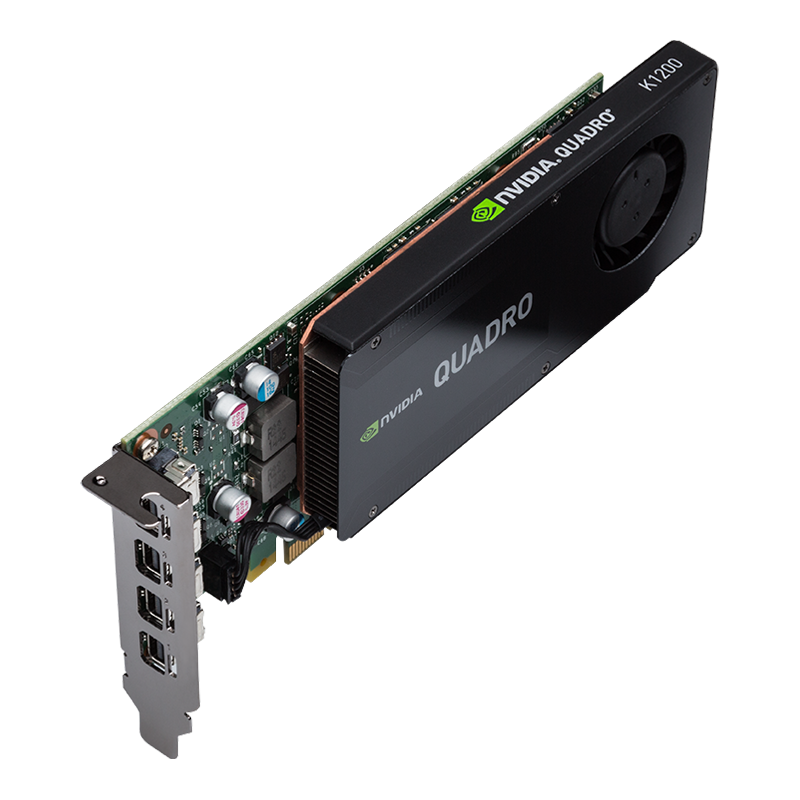

NVIDIA Quadro K1200 for DisplayPort Top

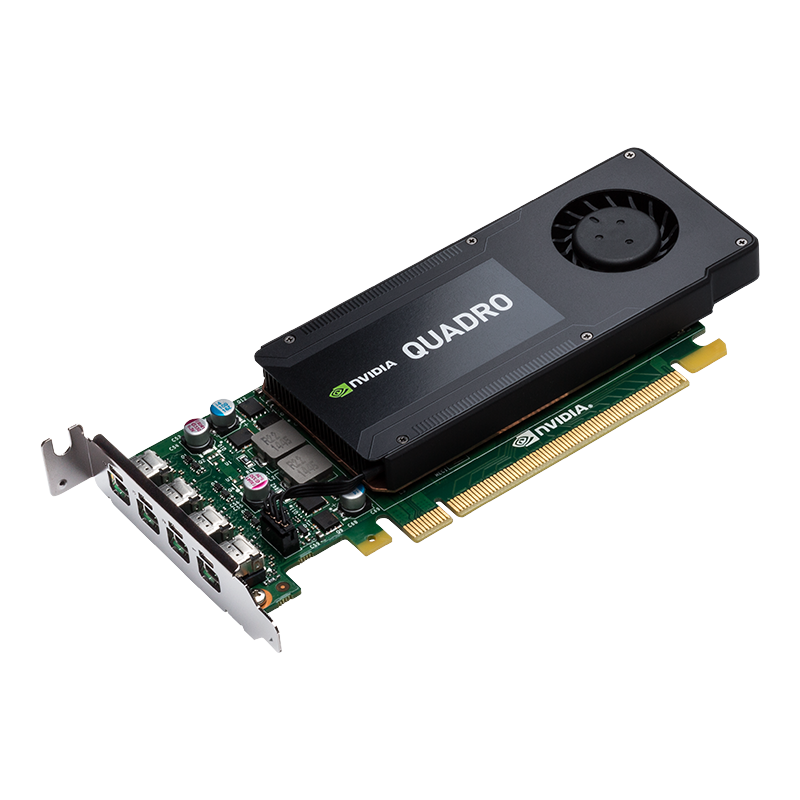

NVIDIA Quadro K1200 for DisplayPort Front Angle

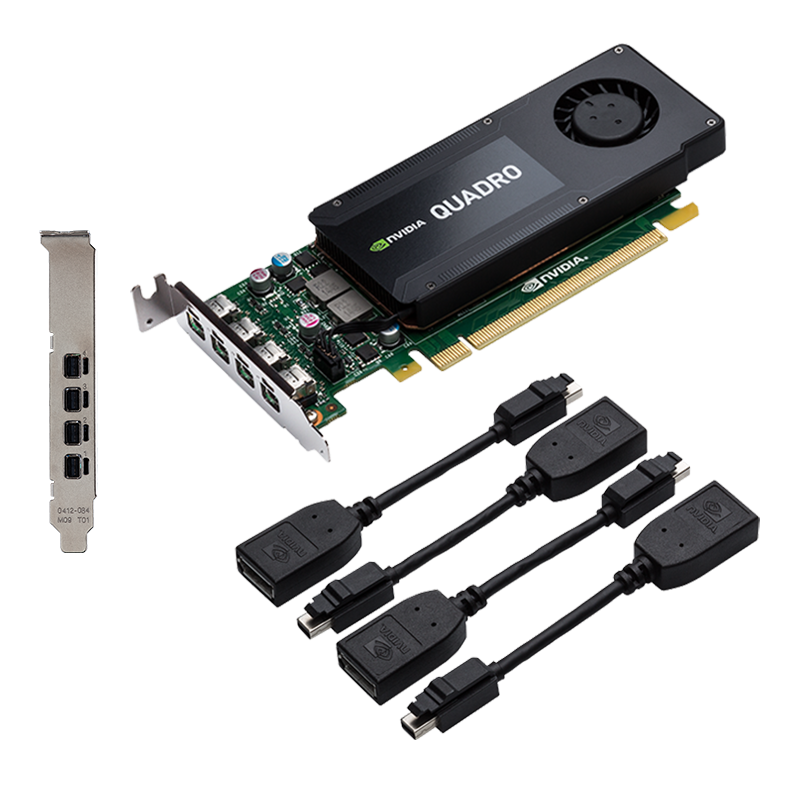

NVIDIA Quadro K1200 for DisplayPort Kit

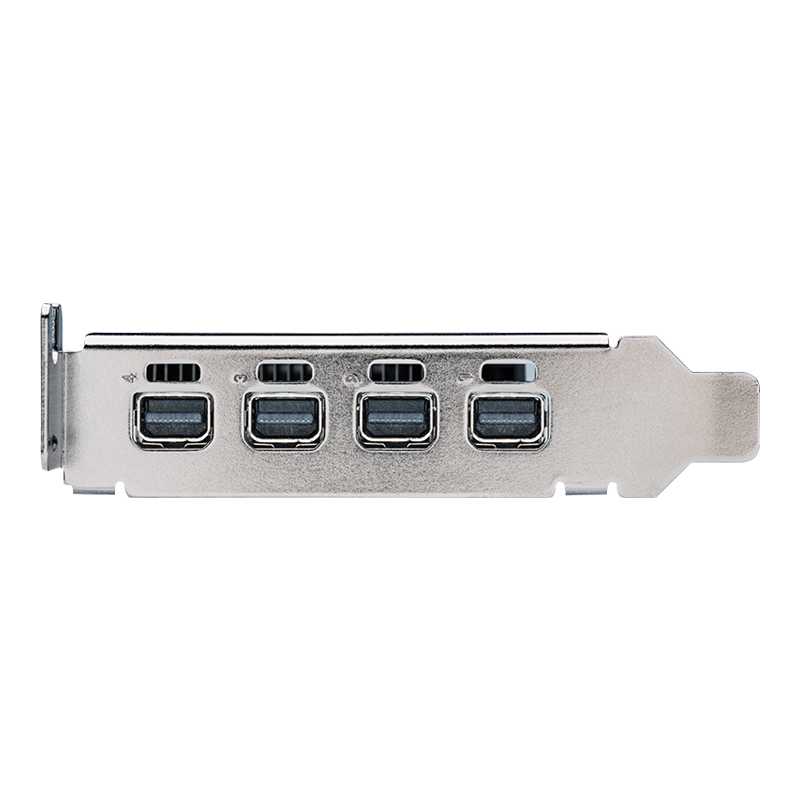

NVIDIA Quadro K1200 for DisplayPort Bracket
NVIDIA Quadro K1200 for DisplayPort Top
NVIDIA Quadro K1200 for DisplayPort Front Angle
NVIDIA Quadro K1200 for DisplayPort Kit
NVIDIA Quadro K1200 for DisplayPort Bracket

NVIDIA Quadro K1200 for DisplayPort

NVIDIA® Quadro K1200 for DisplayPort

  • SKU: VCQK1200DP-PB
  • Description

    Legacy NVIDIA Quadro

    NVIDIA Quadro K1200

    Accelerate Your Creativity

    Now includes both Full-Height and Half-Height brackets.
    Allows installation into any Workstation, Desktop and SFF computer system.

    Offering incredible 3D application performance and the ability to simultaneously drive four 4K displays. The NVIDIA® Quadro® K1200 includes a full-height bracket allowing it to be installed in any workstation, desktop, and mid-tower enclosure. With the supplied low-profile bracket even the most space constrained SFF compact system can be used.

    512 CUDA cores coupled with 4GB of GDDR5 GPU memory with fast bandwidth, the NVIDIA Quadro K1200 enables you to create large, complex 3D models, and an all-new display engine drives up to four displays natively with DisplayPort 1.2 support for true 4K resolutions like 3840 x 2160 at 60 Hz with 30-bit color. The NVDIA Quadro K1200 for DP includes four mini-DisplayPort to DP adapters for DisplayPort displays.

    The NVIDIA Quadro K1200 is the perfect choice for CAD, Manufacturing or Media & Entertainment professionals who are transitioning to 4K software applications and workflows.

    NVIDIA Quadro K1200 for DVI offers:

    • Ability to be installed into a wide variety of computer system configurations
    • 2x graphics performance advantage over competing products
    • Large 4GB GDDR5 GPU memory capacity
    • Excellent AutoCAD and SolidWorks advanced photorealistic rendering
    • Superior CAD graphic performance for value line business PCs
    • Support for four monitors including 4K displays for signage applications
    • Highest performance compact professional graphics board currently available

    Highlights

    CUDA Cores 512
    GPU Memory 4 GB GDDR5
    Memory Interface 128-bit
    Memory Bandwidth 80 GB/s
    System Interface PCI Express 2.0 x16
    Display Connectors 4 mini-DisplayPort (mDP)
    DisplayPort 1.2 Yes
    Warranty 3 Years
    PNY Part Number VCQK1200DVI-PB

    MANUFACTURING SOLUTIONS

    PNY provides unsurpassed service and commitment to its professional graphics customers offering: 3-year warranty, pre- and post-sales support, dedicated NVIDIA Quadro Field Application engineers and direct tech support hot lines. In addition, PNY delivers a complete solution including the appropriate adapters, cables, brackets, software installation disc and documentation to ensure a quick and successful install.

    Warranty


    PNY provides unsurpassed service and commitment to its professional graphics customers offering: 3-year warranty, free pre- and post-sales support, dedicated NVIDIA Quadro Field Application engineers and direct tech support hot lines. In addition, PNY delivers a complete solution including the appropriate adapters, cables, brackets, software installation disc and documentation to ensure a quick and successful install.

    3-Year Limited Warranty

    Free dedicated phone and email technical support (1-800-230-0130)

    Dedicated NVIDIA Quadro Field Application Engineers

    Contact gopny@pny.com for additional information.

  • Features

    NVIDIA Quadro K1200

    FEATURES & BENEFITS

    3D Graphics Architecture

    • Scalable geometry architecture
    • Hardware tessellation engine
    • Bindless Textures
    • Shader Model 5.0 (OpenGL 4.3 and DirectX 11)
    • Up to 16K x 16K texture and render processing
    • Transparent multisampling and super sampling
    • 16x angle independent anisotropic filtering
    • 32-bit per component floating point texture filtering and blending
    • 64X full scene antialiasing
    • FXAA and TXAA full scene antialiasing
    • Decode acceleration for MPEG-2, MPEG-4 Part 2 Advanced Simple Profile, H.264, MVC, VC1, DivX (version 3.11 and later), and Flash (10.1 and later)
    • Dedicated H.264 encoder
    • Blu-ray dual-stream hardware accelerating (supporting HD picture-in-picture playback)
    • NVIDIA GPU Boost (Automatically increases GPU engine throughput to maximize application performance).

    Parallel Computing Capabilities

    • Streaming Multi-Processor Design (SM 5.0) delivers high performance and energy efficiency
    • Support for all the latest CUDA 6 features, including Unified Memory, Dynamic Parallelism and Dedicated Shared Memory)
    • Support for all the latest CUDA 6.5 features
    • Programming support for CUDA C, CUDA C++, DirectCompute 5.0, OpenCL, Python and Fortran

    Advanced Display Features

    • Simultaneously drive up to four displays when connected natively or when using DisplayPort MST
    • Quad DisplayPort 1.2 outputs including Multi-Stream and HBR2 support (capable of supporting resolutions such as 4096 x 2160 at 60 Hz)
    • DisplayPort to VGA and DisplayPort to HDMI cables available (resolution support based on dongle specifications)
    • 12-bit internal display pipeline (hardware support for 12-bit scanout on supported panels, applications and connections)
    • Stereoscopic 3D display support including NVIDIA 3D Vision Pro and 3D Vision, 3D DLP, interleaved, and passive stereo
    • OpenGL and Direct3D quad buffered stereo support
    • Underscan/overscan compensation and hardware scaling
    • Support for NVIDIA Quadro Mosaic, NVIDIA NVIEW multi-display technology, NVIDIA Enterprise Management Tools

    DisplayPort and HDMI Digital Audio

    • Dolby Digital (AC3), DTS 5.1, multi-channel (7.1) LPCM, Dolby Digital Plus (DD+), and MPEG-2/MPEG-4 AAC
    • Data rates of 44.1 KHz, 48 KHz, 88.2 KHz, 96 KHz, 176KHz, and 192 KHz
    • Word sizes of 16-bit, 20-bit, and 24-bit

    GPU FEATURES

    NVIDIA CUDA Architecture

    Parallel-computing architecture that tightly integrates advanced visualization and compute features to significantly accelerate professional workflows.

    NVIDIA Scalable Geometry Engine

    Dramatically improves geometry performance across a broad range of CAD, DCC and medical applications, enabling you to work interactively with models and scenes that are an order of magnitude more complex than ever before.

    Large Framebuffers with Ultra-Fast Bandwidth

    Large GPU memory with fast bandwidth for display of complex models and scenes, as well as computation of large datasets.

    NVIDIA Parallel DataCache™

    Supports a true cache hierarchy combined with on-chip shared memory. L1 and L2 caches drive exception throughput, accelerating features such as real-time ray tracing, physics, and texture filtering.

    Bindless Textures

    Dramatically increases the number of unique textures available to shaders at run-time, enabling vastly more different materials and richer texture detail in scenes.

    NVIDIA Streaming Multiprocessor

    Delivers more processing performance and efficiency through this new, innovative streaming multiprocessor design that allows a greater percentage of space to be applied to processing cores versus control logic.

    H.264 Encoder

    Dedicated H.264 encode engine that' independent of 3D/compute pipeline and delivers faster than real-time performance for transcoding, video editing, and other encoding applications.

    PCI Express 2.0 Compliance

    Supports data transfer rate up to 5 GT/sec per lane for an aggregate bandwidth of 16GB/sec bi-directional (32 GB/s bi-directional and 16GB/s in each direction.)

    Unified Driver Architecture (UDA)

    Guarantees forward and backward compatibility with software drivers, simplifying upgrading to a new NVIDIA Quadro solution whenever you're ready.

    Ultra-Quiet Design

    Silent cooling design enables acoustics lower than 28db for an ultra-quiet desktop environment.

    NVIDIA GPU Boost

    Maximum application performance through automatic adjustment of the GPU clock to take maximum advantage of the power and thermal headroom of the card in real-time.

    IMAGE QUALITY

    Full-Scene Antialiasing (FSAA)

    Up to 64X FSAA for dramatically reducing visual aliasing artifacts or "jaggies," resulting in unparalled image quality and highly realistic scenes.

    NVIDIA FXAA and TXAA

    Reduces visible aliasing and delivers higher image quality without the performance hit by harnessing the power of the GPU's CUDA cores and new film-style AA techniques.

    GPU Tessellation

    NVIDIA Quadro Tessellation Engines automatically generate finely detailed geometry for cinematic quality environments and scenes, without sacrificing performance.

    16K Texture and Render Processing

    Provides the ability to texture from and render to 16K x 16K surfaces. Beneficial for applications that demand the highest resolution and quality image processing.

    DISPLAY FEATURES

    NVIDIA Quadro Mosaic Technology

    Enables transparent scaling of the desktop and applications across up to 16 displays from 4 GPUs from a single workstation while delivering full performance and image quality.

    Multi-Display Support

    The all-new display engine in the NVIDIA GPU drives up to four displays simultaneously, whether they’re directly connected to the board or connected using a single cable using DisplayPort 1.2’s new multi-streaming capabilities. With support for the next-generation DisplayPort 1.2 standard, each DisplayPort connector is also capable of driving ultra-high resolutions like 3840x2160 at 60 Hz with 30-bit color. The flexible display connectivity of the NVIDIA Quadro family makes it easy to deploy multiple displays across a desktop, build an expansive digital signage wall, or create a sophisticated stereoscopic 3D CAVE environment.

    NVIDIA NVIEW Advanced Desktop Software

    This software delivers maximum flexibility for single large display or multi-display options, providing unprecedented end-user control of the desktop experience for increased productivity.

    DisplayPort 1.2 Support (with Audio)

    Compact and secure DisplayPort 1.2 connectors support multi-stream technology, stream cloning and ultra-high-resolution panels (up to 3840 x 2160 at 60Hz ). This enables maximum range, resolution, refresh rate, and color depth designed to support the latest display technologies.

    NVIDIA 3D Vision

    Advanced active shutter glasses that deliver crystal-clear stereoscopic 3D visualization for the most immersive experience. 3D Vision and 3D Vision Pro are sold separately.

    OpenGL Quad Buffered Stereo Support

    Provides a smooth and immersive 3D Stereo experience for professional applications.

    Deep Color Processing and Display

    Preserve color detail and precision throughout the processing and display pipeline for smooth gradients transitions, even on high dynamic range imagery. Each color component can be processed at up to 32-bit floating point precision and displayed at up to 12-bit precision with supported DisplayPort 1.2 or HDMI 1.4 displays.

    SOFTWARE SUPPORT

    NVIDIA CUDA Parallel Computing Platform

    NVIDIA Quadro solutions leverage general-purpose GPU computing using standard programming languages like C/C++ and Fortran, and emerging APIs such as OpenCL and Direct Compute. This broad adoption of CUDA accelerates techniques like ray tracing, video and image processing, and computation fluid dynamics.

    NVIDIA Enterprise-Management Tools

    Exhaustive tools for maximizing your system uptime by enabling seamless wide-scale deployment. This allows remote query and control of graphics and display settings for systems spread across installations.

    MULTI-GPU TECHNOLOGY SUPPORT

    NVIDIA Multi-GPU Technology

    NVIDIA Multi-GPU powered workstations combine the visualization and interactive design capability of multiple GPUs, by leveraging any combination of NVIDIA Quadro and Tesla GPUs to intelligently scale the performance of your application and dramatically speed up your production workflow.

  • Specifications

    NVIDIA Quadro K1200

    SPECIFICATIONS

    Compatible in all systems that accept an NVIDIA Quadro K1200

    CUDA Cores 512
    GPU Memory 4GB GDDR5
    Memory Interface 128-bit
    Memory Bandwidth 80 GB/s
    System Interface PCI Express 2.0 x16
    Maximum Power Consumption 45 W
    Energy Star Enabling Yes
    Thermal Solution Ultra-quiet active fansink
    Form Factor 2.70” H x 6.30” L, Single Slot
    Display Connectors 4 mini-DisplayPort (mDP)
    DisplayPort 1.2 Yes
    DisplayPort with Audio Yes
    DVI-D Dual-Link Support Via optional adapter
    DVI-D Single-Link Connector Via included adapter
    VGA Support Via included adapter
    Number of Displays Supported 4 directly attached or 4 via DP 1.2 MST
    Maximum DP 1.2 Resolution 3840 x 2160 at 60Hz (direct connect)
    Maximum DVI-D DL Resolution 2560 x 1600 at 60Hz
    Maximum DVI-I SL Resolution 1920 x 1200 at 60Hz
    Maximum VGA Resolution 2048 x 1536 at 85Hz
    HDCP Support Yes
    Graphics APIs Shader Model 5.0, OpenGL 4.5, DirectX 12
    Compute APIs CUDA, DirectCompute, OpenCL
    NVIEW Yes
    NVIDIA MOSAIC Yes (Windows 10, 8.1, 8, 7, and Linux)
    NVIDIA 3D Vision and 3D Vision Pro Yes (via USB connection to 3D Vision hub)
    Warranty 3 Years
    PNY Part Number VCQK1200DVI-PB

    MINIMUM SYSTEM HARDWARE REQUIREMENTS

    • Microsoft Windows® 10, 8.1, 8, 7, Vista, Linux®, or Solaris®
    • PCIe x16 expansion slot
    • 2GB or more of system memory, 8GB recommended
    • 200MB of available disk space for full driver installation
    • Blu-ray or DVD-ROM drive
    • Internet connection (if preferred for driver installation)
    • DisplayPort, DVI, or VGA compatible display(s)

    PACKAGE CONTAINS

    • NVIDIA Quadro K1200 professional graphics board
    • Attached low-profile (SFF) bracket
    • Unattached full-height (ATX) bracket
    • Four mini-DisplayPort to DisplayPort adapters
    • Software installation disc for Windows 10, 8.1, 8, 7, and Vista (32- and 64-bit)
    • Printed QuickStart Guide
