NVIDIA Quadro M6000 Kit
NVIDIA Quadro M6000 Front
NVIDIA Quadro M6000 Top

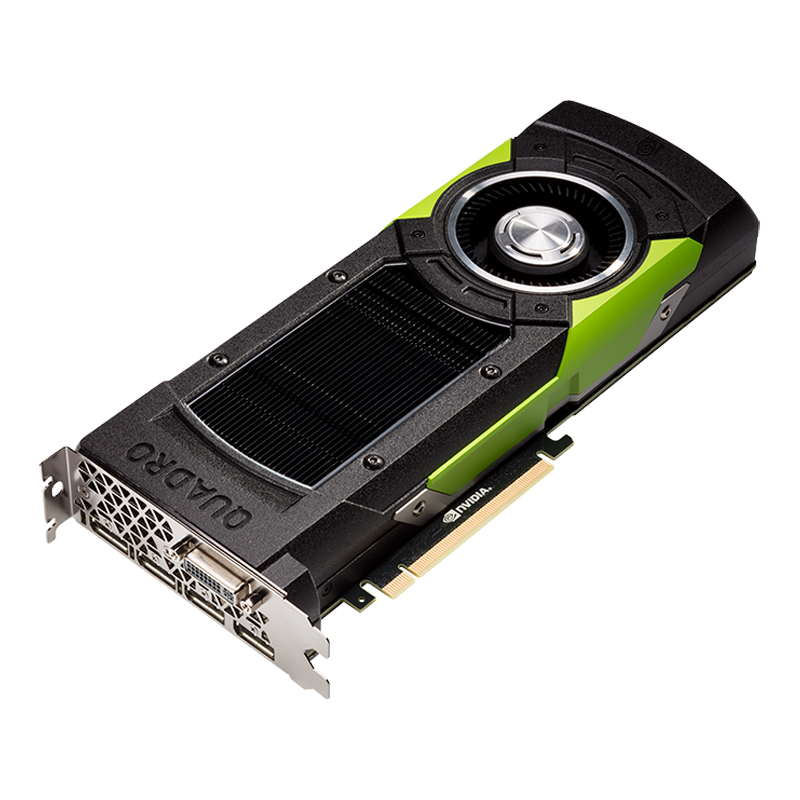

NVIDIA Quadro M6000 Front Angle
NVIDIA Quadro M6000 Accessories
NVIDIA Quadro M6000 Bracket
NVIDIA Quadro M6000 Kit
NVIDIA Quadro M6000 Front
NVIDIA Quadro M6000 Top
NVIDIA Quadro M6000 Front Angle
NVIDIA Quadro M6000 Accessories
NVIDIA Quadro M6000 Bracket

NVIDIA Quadro M6000

NVIDIA® Quadro M6000

  • SKU: VCQM6000-PB
  • Description

    Legacy NVIDIA Quadro

    NVIDIA Quadro M6000

    Real Interactive Expression Hi

    Get real interactive expression with NVIDIA® Quadro®—the world’s most powerful workstation graphics. The NVIDIA Quadro M6000, accelerated by NVIDIA’s Maxwell™ GPU architecture, lets you conquer your most challenging visualization workloads with ease and enjoy interactive physically based rendering of your work. 12 GB of GDDR5 GPU memory with ultra-fast bandwidth allows you to create and render large, complex models and compute massive datasets. Plus, there’s the all-new display engine that drives up to four 4K resolution displays natively with DisplayPort 1.2 support for ultra-high resolutions like 4096 x 2160 at 60 Hz with 30-bit color. Synchronize multiple displays across systems with the NVIDIA Quadro Sync board and accelerate data transfer with external I/O boards through GPU Direct™ for Video and dual-copy engines.

    Designed and built specifically for professional workstations, NVIDIA Quadro GPUs power more than 200 professional applications across a broad range of industries including manufacturing, media and entertainment, sciences, and energy. Professionals trust them to realize their most ambitious visions— whether its product design, visualization and simulation, or spectacular visual storytelling—and get results to market faster.

    Highlights

    CUDA Cores 3072
    GPU Memory 12GB GDDR5
    Memory Interface 384-bit
    Memory Bandwidth 317 GB/s
    System Interface PCI Express 3.0 x16
    Display Connectors DP 1.2 (4) + DVI-I DL (1) + Stereo
    DisplayPort 1.2 Yes
    Warranty 3 Years Yes
    PNY Part Number VCQM6000-PB

    MANUFACTURING SOLUTIONS

    PNY provides unsurpassed service and commitment to its professional graphics customers offering: 3-year warranty, pre- and post-sales support, dedicated NVIDIA Quadro Field Application engineers and direct tech support hot lines. In addition, PNY delivers a complete solution including the appropriate adapters, cables, brackets, software installation disc and documentation to ensure a quick and successful install.

    Warranty


    PNY provides unsurpassed service and commitment to its professional graphics customers offering: 3-year warranty, free pre- and post-sales support, dedicated NVIDIA Quadro Field Application engineers and direct tech support hot lines. In addition, PNY delivers a complete solution including the appropriate adapters, cables, brackets, software installation disc and documentation to ensure a quick and successful install.

    3-Year Limited Warranty

    Free dedicated phone and email technical support (1-800-230-0130)

    Dedicated NVIDIA Quadro Field Application Engineers

    Contact gopny@pny.com for additional information.

  • Features

    NVIDIA Quadro M6000

    SPECIFICATIONS

    Compatible in all systems that accept an NVIDIA Quadro M6000

    CUDA Cores 3072
    GPU Memory 12 GB GDDR5
    Memory Interface 384-bit
    Memory Bandwidth 317 GB/s
    System Interface PCI Express 3.0 x16
    Maximum Power Consumption 250 W
    Energy Star Enabling Yes
    Thermal Solution Ultra-quiet active fansink
    Form Factor 4.40” H x 10.50” L, Single Slot
    Display Connectors DP 1.2 (4) + DVI-D DL (1) + Stereo
    DisplayPort 1.2 Yes
    DisplayPort with Audio Yes
    DVI-D Dual-Link Connector Via included adapter
    DVI-D Single-Link Connector Via included adapter
    VGA Support Via included adapter
    Number of Displays Supported 4
    Maximum DP 1.2 Resolution 4096 x 2160 at 60Hz
    Maximum DVI-D DL Resolution 2560 x 1600 at 60Hz
    Maximum DVI-I SL Resolution 1920 x 1200 at 60Hz
    Maximum VGA Resolution 2048 x 1536 at 85Hz
    HDCP Support Yes
    Professional 3D Support Yes, via included stereo connector bracket
    Quadro Sync Compatible Yes
    NVIDIA GPU Direct Compatible Yes
    Graphics APIs Shader Model 5.0, OpenGL 4.5, DirectX 12
    Compute APIs CUDA, DirectCompute, OpenCL
    NVIEW Yes
    NVIDIA MOSAIC Yes (Windows 10, 8.1, 8, 7, and Linux)
    NVIDIA 3D Vision and 3D Vision Pro Yes
    Warranty 3 Years
    PNY Part Number VCQM6000-PB

    MINIMUM SYSTEM HARDWARE REQUIREMENTS

    • Microsoft Windows® 10, 8.1, 8, 7, Vista, Linux®, or Solaris®
    • PCIe x16 Gen 3 (preferred) expansion slot
    • 2 GB or more of system memory, 8 GB recommended
    • 200MB of available disk space for full driver installation
    • Blu-ray or DVD-ROM drive
    • Internet connection (if preferred for driver installation)
    • DisplayPort, DVI, or VGA compatible display(s)

    PACKAGE CONTAINS

    • NVIDIA Quadro M6000 professional graphics board
    • Stereo connector bracket
    • Two DisplayPort to DVI-D SL adapters
    • DVI-I to VGA adapter
    • 6-pin auxiliary power cable
    • Software installation disc for Windows 10, 8.1, 8, 7, and Vista (32- and 64-bit)
    • Printed QuickStart Guide
  • Specifications

    NVIDIA Quadro M6000

    SPECIFICATIONS

    Compatible in all systems that accept an NVIDIA Quadro M6000

    CUDA Cores 3072
    GPU Memory 12 GB GDDR5
    Memory Interface 384-bit
    Memory Bandwidth 317 GB/s
    System Interface PCI Express 3.0 x16
    Maximum Power Consumption 250 W
    Energy Star Enabling Yes
    Thermal Solution Ultra-quiet active fansink
    Form Factor 4.40” H x 10.50” L, Single Slot
    Display Connectors DP 1.2 (4) + DVI-D DL (1) + Stereo
    DisplayPort 1.2 Yes
    DisplayPort with Audio Yes
    DVI-D Dual-Link Connector Via included adapter
    DVI-D Single-Link Connector Via included adapter
    VGA Support Via included adapter
    Number of Displays Supported 4
    Maximum DP 1.2 Resolution 4096 x 2160 at 60Hz
    Maximum DVI-D DL Resolution 2560 x 1600 at 60Hz
    Maximum DVI-I SL Resolution 1920 x 1200 at 60Hz
    Maximum VGA Resolution 2048 x 1536 at 85Hz
    HDCP Support Yes
    Professional 3D Support Yes, via included stereo connector bracket
    Quadro Sync Compatible Yes
    NVIDIA GPU Direct Compatible Yes
    Graphics APIs Shader Model 5.0, OpenGL 4.5, DirectX 12
    Compute APIs CUDA, DirectCompute, OpenCL
    NVIEW Yes
    NVIDIA MOSAIC Yes (Windows 10, 8.1, 8, 7, and Linux)
    NVIDIA 3D Vision and 3D Vision Pro Yes
    Warranty 3 Years
    PNY Part Number VCQM6000-PB

    MINIMUM SYSTEM HARDWARE REQUIREMENTS

    • Microsoft Windows® 10, 8.1, 8, 7, Vista, Linux®, or Solaris®
    • PCIe x16 Gen 3 (preferred) expansion slot
    • 2 GB or more of system memory, 8 GB recommended
    • 200MB of available disk space for full driver installation
    • Blu-ray or DVD-ROM drive
    • Internet connection (if preferred for driver installation)
    • DisplayPort, DVI, or VGA compatible display(s)

    PACKAGE CONTAINS

    • NVIDIA Quadro M6000 professional graphics board
    • Stereo connector bracket
    • Two DisplayPort to DVI-D SL adapters
    • DVI-I to VGA adapter
    • 6-pin auxiliary power cable
    • Software installation disc for Windows 10, 8.1, 8, 7, and Vista (32- and 64-bit)
    • Printed QuickStart Guide
