Unmatched Power. Unmatched Creative Freedom.

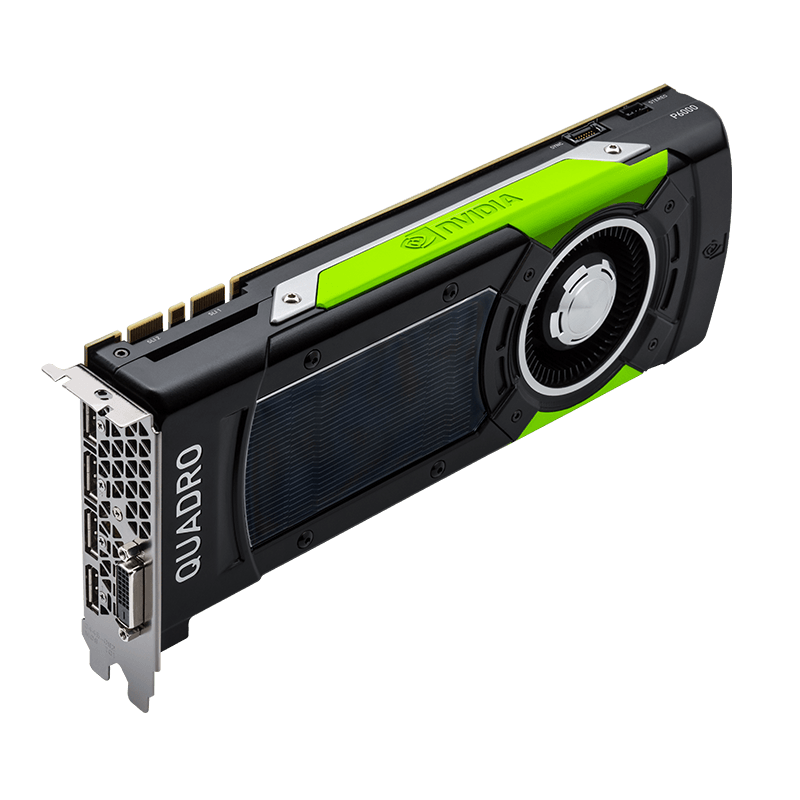

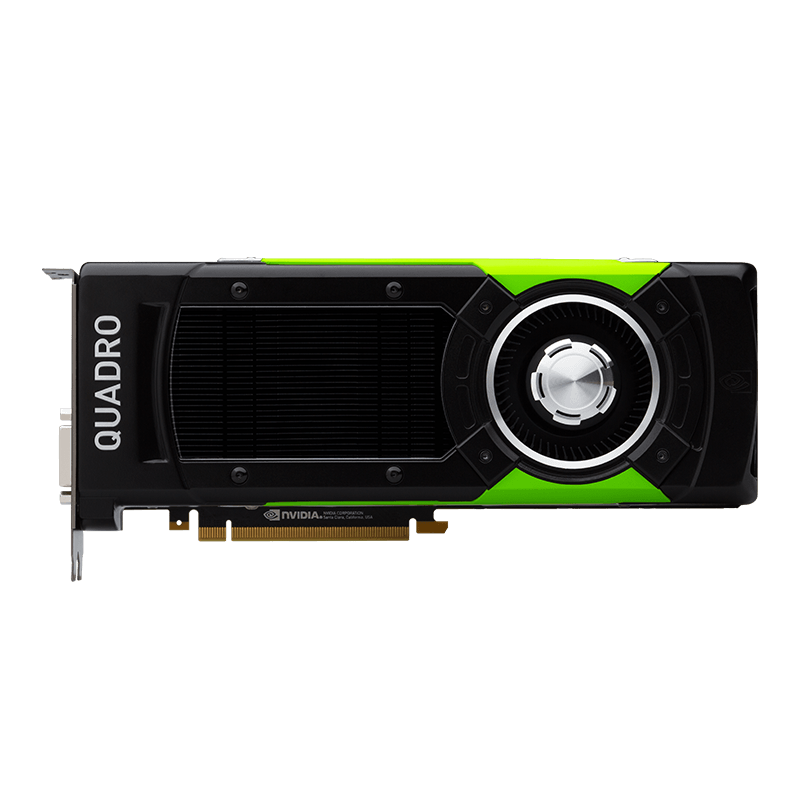

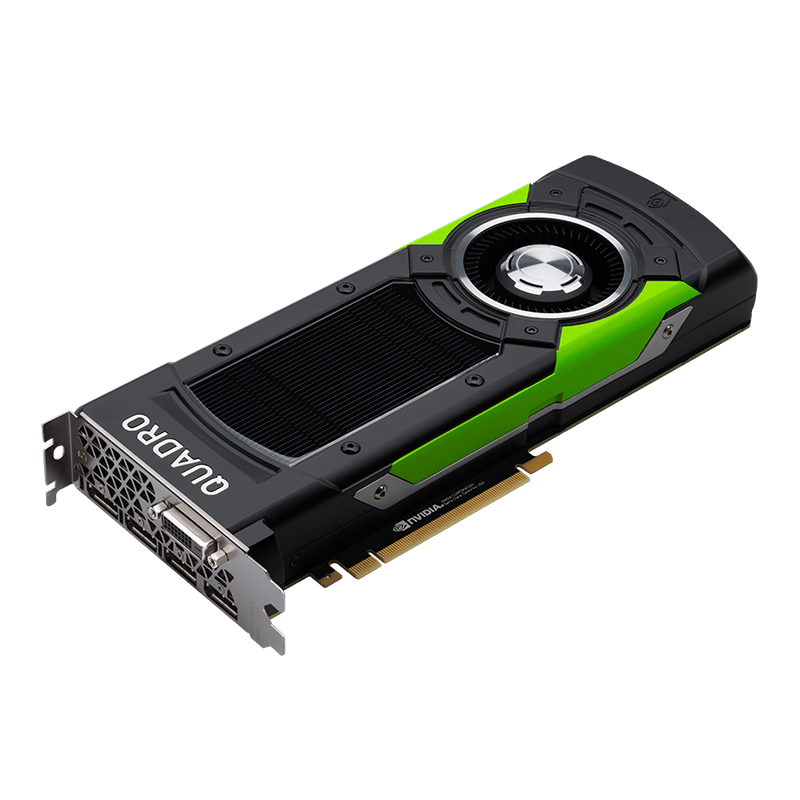

NVIDIA Quadro P6000—The World’s Most Powerful Workstation Graphics Solution.
The NVIDIA Quadro P6000 is the most advanced pure professional graphics solution ever created, combining the latest GPU, memory and display technologies that result in unprecedented performance and breakthrough capabilities. Professionals across a range of industries can now create their most complex designs, solve the most challenging visualization problems and experience their creations within the most detailed, lifelike and immersive VR environments. Additionally, you can create massive digital signage solutions by connecting multiple P6000s via Quadro Sync II.
Designs become more complex over time. Visual effects grow in size, complexity, and scope. Scientific visualization and compute problems continue to push the boundaries of workstation capabilities. VR is changing all facets of entertainment, design, engineering, architecture, and medicine. As professional workflows grow in size and complexity, the demand for visual compute power grows with it.
Quadro P6000’s Pascal architecture GPU implementation, GDDR5X memory and DisplayPort 1.4 support synergistically deliver the best overall single precision FP32 performance and professional graphics solutions. The P6000 enables users to create large, complex designs, interactively render photorealistic imagery, and create detailed, lifelike VR experiences.
|CUDA Cores ||3840 |
|Peak Single Precision FP32 Performance ||12.0 TFLOPS |
|GPU Memory ||24 GB GDDR5X |
|Memory Interface ||384-bit |
|Memory Bandwidth ||432 GB/s |
|System Interface ||PCI Express 3.0 x16 |

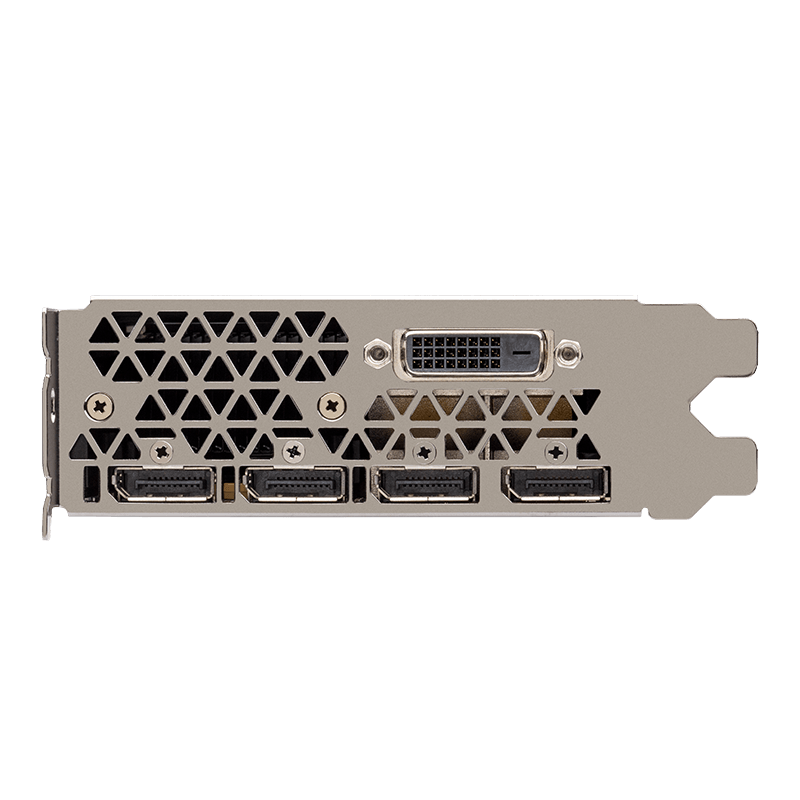

|Display Connectors ||DP 1.4 (4) + DVI-D DL (1) + Stereo |
GPU Performance Features
Pascal GPU Architecture
Based on state-of-the-art 16nm FinFET Plus process technology to pack 3840 CUDA Cores and deliver up to 12.0 TFLOPS of single precision compute power. The Quadro P6000 graphics board is the industry’s most powerful dual-slot form factor graphics-optimized board, with features tailored for computationally demanding FP32 single precision design visualization or immersive design reviews. Get real interactive expression with today’s demanding professional workflows.
Complete stereo rendering of geometry in a single pass to double the effective throughput for applications such as VR.
Pascal Dynamic Load Balancing
Dynamically allocate GPU resources for graphics and compute tasks as needed to maximize resource utilization.
Pascal Graphics Preemption
First ever pixel level preemption provides more granular control to better support time-sensitive tasks such as VR motion tracking.
Pascal Compute Preemption
Preemption at the thread and instruction level provides finer grain control over compute tasks.
H.264 and HEVC Encode/Decode Engines
Deliver faster than real-time performance for transcoding, video editing, and other encoding applications with one dedicated H.264 and HEVC encode engines and a dedicated decode engine that are independent of 3D/compute pipeline.
NVIDIA GPU Boost
Achieve higher application performance without exceeding the power and thermal envelope of the board. Pascal GPU technology maximizes the boost potential of the GPU.
Image Quality Features
Full-Scene Antialiasing (FSAA)
Dramatically reduce visual aliasing artifacts or "jaggies" with up to 64X FSAA (128X with SLI) for unparalleled image quality and highly realistic scenes.
16K Texture and Render Processing
Texture from and render to 16K x 16K surfaces to support applications that demand the highest resolution and quality image processing.
Pascal Memory Compression
Increase bandwidth by up to 20% by reducing the amount of data fetched from memory for each frame with fourth generation, lossless delta compression.
NVIDIA Quadro MOSAIC Technology
Transparently scale the desktop and applications across up to 4 GPUs and 16 displays from a single workstation while delivering full performance and image quality.
NVIDIA Quadro Sync II
Synchronize the display and image output of up to 32 displays from 8 GPUs (connected through two Sync II boards) in a single workstation, reducing the number of machines needed to create an advanced visualization environment. Each frame lock cable is designed with a self-locking retention mechanism to secure its connection with the frame lock connector to provide robust connectivity and maximum productivity. P6000 + Quadro Sync II turnkey bundles are available. 32 display support requires a software update. Until then a maximum of 16 displays can be supported.
Support up to four 5K monitors at 60Hz, or dual 8K displays per card. The P6000 supports HDR color for 4K at 60Hz for 10/12b HEVC decode and up to 4K at 60Hz for 10b HEVC encode. Each DisplayPort connector is capable of driving ultra-high resolutions of 4096 x 2160 at 120 Hz with 30-bit color.
Built in compatibility with High Dynamic Range (HDR) TV’s and Display devices (Windows only), whether it’s a custom application or video, which will be accelerated by the on chip 4K at 60Hz 10bpp HEVC decode or up to 4K at 60Hz for 10bpp HEVC encode.
NVIDIA NVIEW Advanced Desktop Software
Gain unprecedented end-user control of the desktop experience for increased productivity in single large display or multi-display environments.
OpenGL Quad Buffered Stereo Support
Provide a smooth and immersive 3D Stereo experience for professional applications.
Ultra High Resolution Desktop Support
Get more MOSAIC topology choices with high resolution displays devices with a 32K Max desktop size.
Professional 3D Stereo Synchronization
Robust control of stereo effects through a dedicated connection to directly synchronize 3D stereo hardware to a Quadro graphics card.
NVIDIA CUDA Parallel Computing Platform
Natively execute standard programming languages like C/C++ and Fortran, and APIs such as OpenCL, OpenACC and Direct Compute to accelerate techniques such as ray tracing, video and image processing, and computation fluid dynamics.
NVIDIA GPUDirect for Video
GPUDirect for Video speeds communication between the GPU and video I/O devices by avoiding unnecessary system memory copies and CPU overhead.
NVIDIA Enterprise-Management Tools
Maximize system uptime, seamlessly manage wide-scale deployments and remotely control graphics and display settings for efficient operations.
NVIDIA Multi-GPU Technology
Combine the visualization and interactive design capability of multiple GPUs by leveraging a mix of Quadro GPUs to dramatically improve the production workflow.
NVIDIA SLI HB Technology
Leverage multiple P6000 GPUs to dynamically scale graphics performance, enhance image quality, expand display real estate, and assemble a fully virtualized system. 5K resolution in SLI mode supported.
