Form Factor & Dimensions |
Reduced 2U, 450 x 439 x 87.6 (D x W x H mm)
|
CPU
|
2 x Intel® Xeon® Gold 5218/16 cores, 32HT/2.3 GHz Base, 3.9 GHz Turbo/22MB/125W/DDR4 2667MHz/4S/1 x AVX-512 FMA unit
|
Socket & Chipset |
2 x LGA 3647, Intel® C621
|
Memory
|
4 x Samsung DDR4-2933 Reg. ECC 16 GB 1RX4 RDIMM |
Storage
|
1 x Intel D3 S4510 1.92TB 2.5” SATA3 Enterprise Datacenter SSD
|
Network Controller
|
2 x 1GbE LAN ports (shared with IPMI v2.0)
|
Expansion Slots
|
4 x HH HL PCIe Gen3 x 16 slots + 3 x HH HL PCIe Gen3 x 8 slots
|

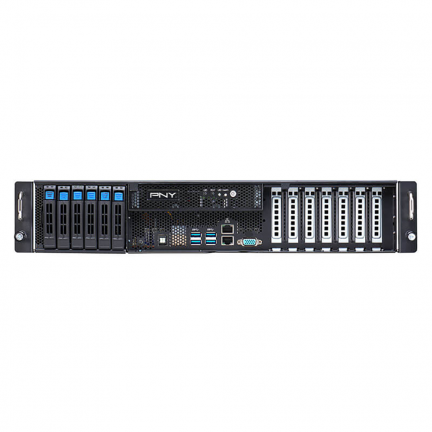

Front/Rear I/Os |
4 x USB 3.0, 1 x VGA, 2 x RJ45
|

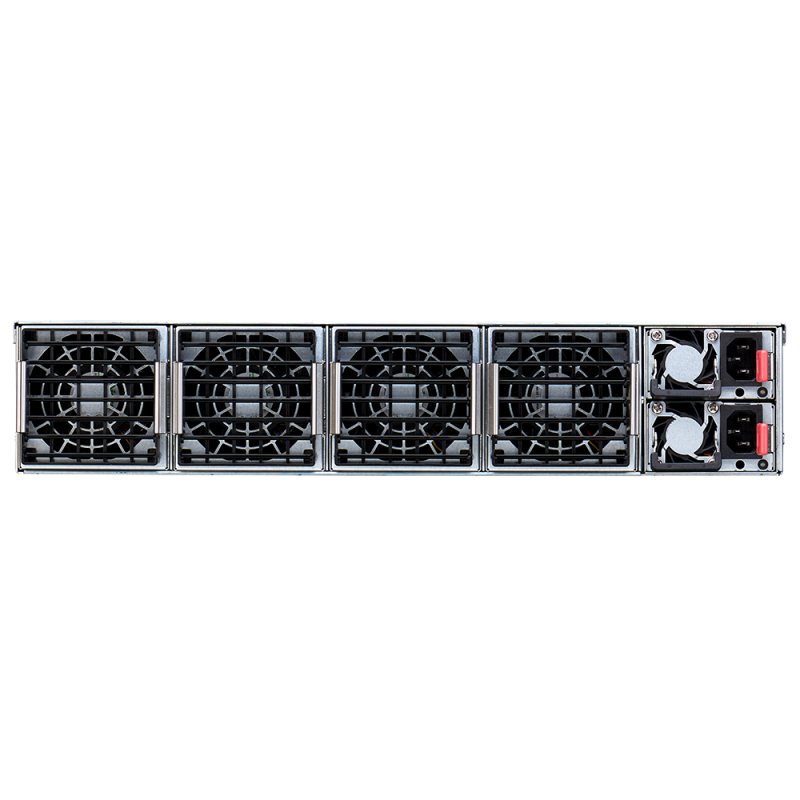

System Cooling
|
4 x 80x80x38mm hot-swap redundant system fans |
Power Supply |
1+1 x 800W redundant PSU (80+ Platinum) (100-240 VAC / 48VDC)
|
Operating Temperature & Humidity
|
5°C~45°C, 5%~95% |
NGC Support Services
|
in option, chargeable per GPU |
