3D Graphics Architecture

• Scalable geometry architecture
• Hardware tessellation engine
• NVIDIA GigaThread engine with dual copy engines
• Shader Model 5.0 (OpenGL 4.3 and DirectX 11)
• Up to 16K x 16K texture and render processing
• Transparent multisampling and super sampling
• 16x angle independent anisotropic filtering
• 128-bit floating point performance
• 32-bit per component floating point texture filtering and blending
• 64X full scene antialiasing
• FXAA and TXAA full scene antialiasing
• Decode acceleration for MPEG-2, MPEG-4 Part 2 Advanced Simple Profile, H.264, MVC, VC1, DivX (version 3.11 and later), and Flash (10.1 and later)
• Dedicated H.264 encoder
• Blu-ray dual-stream hardware accelerating (supporting HD picture-in-picture playback)

NVIDIA CUDA Parallel Processing Architecture

• SMX architecture (streaming multi-processor design that delivers greater processing and efficiency)
• API support including: CUDA C, CUDA C++, DirectCompute 5.0, OpenCL, Java, Python, and Fortran
• NVIDIA Parallel Data Cache hierarchy (configurable L1 and unified L2 caches)
• Error-Correction Code (ECC) memory
• 64KB of RAM (configurable partitioning of shared memory and L1 cache)
• Dual Warp Schedules (schedules and dispatches simultaneously instructions from two independent warps)

Advanced Display Features

• 30-bit color (10-bit per each red, green and blue channel)

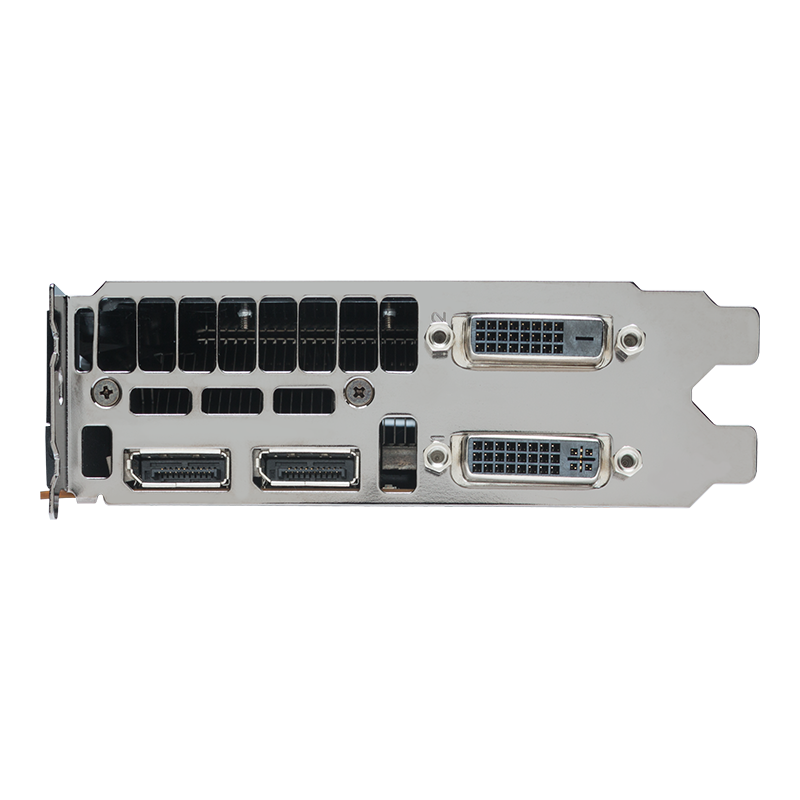

• Support for any combination of four connected displays
• DisplayPort 1.2 ( Up to 4096 x 2160 at 60Hz and 2560 x 1600 at 120Hz)
• DVI-I Dual-Link output (up to 2560 x 1600 at 60Hz and 1920 x 1200 at 120Hz)
• DVI-D Dual-Link output (up to 2560 x 1600 at 60Hz and 1920 x 1200 at 120Hz)
• Internal 400MHz DAC DVI-I output (analog display up to 2048 x 1536 at 85Hz)
• DisplayPort 1.2, HDMI 1.4, and HDCP support (HDMI requires 3rd party adapter)
• 10-bit internal display processing
• NVIDIA 3D Vision™ technology, 3D DLP, interleaved, and other 3D stereo format support
• Full OpenGL quad buffered stereo support
• Underscan/overscan compensation and hardware scaling
• NVIDIA NVIEW multi-display technology
• NVIDIA Mosaic technology
• Support for large-scale, ultra-high resolution visualization including NVIDIA Quadro Mosaic, NVIDIA Quadro Sync and Warp/Blend technologies

DisplayPort and HDMI Digital Audio

• Dolby Digital (AC3), DTS 5.1, multi-channel (7.1) LPCM, Dolby Digital Plus (DD+), and MPEG-2/MPEG-4 AAC
• Data rates of 44.1 KHz, 48 KHz, 88.2 KHz, 96 KHz, 176KHz, and 192 KHz
• Word sizes of 16-bit, 20-bit, and 24-bit

NVIDIA CUDA Architecture

Parallel-computing architecture that tightly integrates advanced visualization and compute features to significantly accelerate professional workflows.

NVIDIA Scalable Geometry Engine

Dramatically improves geometry performance across a broad range of CAD, DCC and medical applications, enabling you to work interactively with models and scenes that are an order of magnitude more complex than ever before.

Large Framebuffers with Ultra-Fast Bandwidth

Large GPU memory with fast bandwidth for display of complex models and scenes, as well as computation of large datasets.

Dual Copy Engines

Enables the highest rates of parallel data processing and concurrent throughput between the GPU and host, accelerating techniques such as ray tracing, color grading and physical simulation.

Bindless Textures

Dramatically increases the number of unique textures available to shaders at run-time, enabling vastly more different materials and richer texture detail in scenes.

NVIDIA SMX

Delivers more processing performance and efficiency through this new, innovative streaming multiprocessor design that allows a greater percentage of space to be applied to processing cores versus control logic.

H.264 Encoder

Dedicated H.264 encode engine that' independent of 3D/compute pipeline and delivers faster than real-time performance for transcoding, video editing, and other encoding applications.

PCI Express 3.0 Compliance

Enables data transfer rate up to 8 GT/sec per lane for an aggregate bandwidth of 32GB/sec bi-directional (16GB/sec in each direction).

Ultra-Quiet Design

Silent cooling design enables acoustics lower than 28db for an ultra-quiet desktop environment.

Full-Scene Antialiasing (FSAA)

Up to 64X FSAA for dramatically reducing visual aliasing artifacts or "jaggies," resulting in unparalled image quality and highly realistic scenes.

NVIDIA FXAA and TXAA

Reduces visible aliasing and delivers higher image quality without the performance hit by harnessing the power of the GPU's CUDA cores and new film-style AA techniques.

GPU Tessellation with Shader Model 5.0

NVIDIA Quadro Tessellation Engines automatically generate finely detailed geometry for cinematic quality environments and scenes, without sacrificing performance.

16K Texture and Render Processing

Provides the ability to texture from and render to 16K x 16K surfaces. Beneficial for applications that demand the highest resolution and quality image processing.

NVIDIA Quadro Mosaic Technology

Enables transparent scaling of the desktop and applications across up to 16 displays from 4 GPUs from a single workstation while delivering full performance and image quality.

Quad-Display Support

All-new display engine drives up to four displays simultaneously and fully supports the next generation Display Port 1.2 standard capable of resolutions such as 3840 x 2160 at 60Hz, making it easy to deploy multiple displays across a desktop, build an expansive digital signage wall, or create a sophisticated stereoscopic 3D CAVE environment.

NVIDIA NVIEW Advanced Desktop Software

This software delivers maximum flexibility for single large display or multi-display options, providing unprecedented end-user control of the desktop experience for increased productivity.

DisplayPort 1.2 Support (with Audio)

Compact and secure DisplayPort 1.2 connectors support multi-stream technology, stream cloning and ultra-high-resolution panels (up to 3840 x 2160 at 60Hz ). This enables maximum range, resolution, refresh rate, and color depth designed to support the latest display technologies.

30-Bit Color Fidelity

10-bits per red, green, and blue). Enables billions of color variations for rich, vivid image quality with the broadest dynamic range.

HD SDI Capture and Output

Industry's only GPU-accelerated solution for real-time acquisition, processing, and delivery of high-resolution SDI video, across traditional and now 3D video broadcast, environments. Supports uncompressed 8-, 10-, 12-bit SDI via available NVIDIA Quadro SDI Capture and Quadro SDI Output cards.

NVIDIA Quadro Sync

Ensures image and frame synchronization between up to four GPUs when running NVIDIA Quadro Mosaic or independent GPUs in cluster. NVIDIA Quadro Sync also allows synchronization to an external timing source (also known as genlock or house sync). NVIDIA Quadro Sync enables advanced visualization systems to scale the resolution of the display surface with multiple projectors or displays with standard applications or applications designed for clusters.

NVIDIA 3D Vision and 3D Vision Pro

Advanced active shutter glasses that deliver crystal-clear stereoscopic 3D visualization for the most immersive experience. Infrared (3D Vision) or RF (3D Vision Pro) technology enable a range of immersive environments from your desktop workstation to collaborative work spaces. 3D Vision and 3D Vision Pro are sold separately.

OpenGL Quad Buffered Stereo Support

Provides a smooth and immersive 3D Stereo experience for professional applications.

Professional 3D Stereo Synchronization

Enables robust control of stereo effect through a dedicated three-pin mini-din connection to directly synchronize 3D stereo hardware to NVIDIA Quadro graphics card.

NVIDIA CUDA Parallel Computing Platform

NVIDIA Quadro solutions leverage general-purpose GPU computing using standard programming languages like C/C++ and Fortran, and emerging APIs such as OpenCL and Direct Compute. This broad adoption of CUDA accelerates techniques like ray tracing, video and image processing, and computation fluid dynamics.

NVIDIA GPUDirect

NVIDIA GPUDirect capability increases compute performance when data throughput or latency reduction are key considerations by allowing direct access to GPU memory by 3rd-party devices such as SDI video adapters, NICs and SSDs.

NVIDIA GPUDirect for Video

NVIDIA GPUDirect for Video technology allows 3rd party hardware to communicate directly with NVIDIA GPUs. By taking advantage of this new API the historical issues of introducing too much delay or latency are gone. With NVIDIA GPUDirect for Video, devices are fully synchronized and the CPU doesn't waste cycles copying data between device drivers.

NVIDIA Maximus Technology

Maximus-powered workstations combine the visualization and interactive design capability of NVIDIA Quadro GPUs and the high-performance computing power of NVIDIA Tesla GPUs into a single workstation.
