Maxwell Streaming Multiprocessor
The heart of Maxwell’s power efficient performance is its newly designed Streaming Multiprocessor which delivers incredible performance and unmatched power efficiency, through an improved instruction scheduler and new data path organization.
Maxwell Memory Architecture
Improved caching effectiveness and significant enhancements in memory compression techniques in Maxwell reduces traffic and provides higher performance for applications dependent on memory bandwidth. Additionally, Maxwell‘s dedicated shared memory per SM (separated from the L1 cache) and larger L2 cache, dramatically improves programmability and efficiency.
Viewport Multicast
Dedicated hardware to automatically broadcast input geometry to render to multiple render targets which drastically speeds up multi projection (the ability to render the same scene from multiple views) leading to accelerated rendering for cube maps used in multi-view projectors.
Sparse Textures
Virtualizes texture sizes enabling applications to seamlessly work with large and complex data sets regardless of the available frame buffer.
Accelerated Voxelization
Enhancements to voxel handling techniques enables fast voxelization which significantly accelerates workflows like fluid simulation and 3D Printing.
Bindless Graphics
Optimizes GPU utilization by dramatically reducing CPU-GPU interactions, enabling developers to implement more sophisticated and complex algorithms providing end users greater performance and higher levels of visual fidelity.
H.264 and HEVC Encoder
Dedicated H.264 and HEVC encode engine that is independent of 3D/compute pipeline and delivers faster than real-time performance for transcoding, video editing, and other encoding applications.
NVIDIA CUDA Architecture
Parallel-computing architecture that tightly integrates advanced visualization and compute features to significantly accelerate professional workflows.
NVIDIA Scalable Geometry Engine
Dramatically improves geometry performance across a broad range of CAD, DCC and medical applications, enabling you to work interactively with models and scenes that are an order of magnitude more complex than ever before.
Dynamic Parallelism
Simplifies GPU programming by allowing programmers to easily accelerate all parallel nested loops – resulting in a GPU dynamically spawning new threads on its own without going back to the CPU.
Large Framebuffers with Ultra-Fast Bandwidth
Large GPU memory with fast bandwidth for display of complex models and scenes, as well as computation of large datasets.
PCI Express 3.0 Compliance
Supports data transfer rate up to 8 GB/sec per lane for an aggregate bandwidth of 32 GB/sec bi-directional (16 GB/sec in each direction.)
Unified Driver Architecture (UDA)
Guarantees forward and backward compatibility with software drivers, simplifying upgrading to a new NVIDIA Quadro solution whenever you're ready.
Remote Workstation Application Acceleration
Remotely interact with professional GPU-accelerated applications through software such as Microsoft RDP and Splashtop.
Ultra-Quiet Design
Silent cooling design enables lower acoustics for an ultra-quiet desktop environment.
NVIDIA GPU Boost
Automatically maximizes application performance in real time while staying within the power and thermal envelope of the card.
Multi-pixel Programmable Sampling
Maxwell features multi-pixel programmable sampling, increasing sample flexibility and improved sample randomization which reduces quantization artifacts. This results in superior image quality without penalizing performance.
Full-Scene Antialiasing (FSAA)
Up to 64X FSAA for dramatically reducing visual aliasing artifacts or "jaggies," resulting in unparalled image quality and highly realistic scenes.
NVIDIA FXAA and TXAA
Reduces visible aliasing and delivers higher image quality without the performance hit by harnessing the power of the GPU's CUDA cores and new film-style AA techniques.
16K Texture and Render Processing
Provides the ability to texture from and render to 16K x 16K surfaces. Beneficial for applications that demand the highest resolution and quality image processing.
NVIDIA Quadro Mosaic Technology
Enables transparent scaling of the desktop and applications across up to 16 displays from 4 GPUs from a single workstation while delivering full performance and image quality.
Multi-Display Support
All-new display engine drives up to four displays simultaneously and fully supports the next generation Display Port 1.2 standard capable of resolutions such as 3840 x 2160 at 60Hz, making it easy to deploy multiple displays across a desktop, build an expansive digital signage wall, or create a sophisticated stereoscopic 3D CAVE environment.
NVIDIA NVIEW Advanced Desktop Software
This software delivers maximum flexibility for single large display or multi-display options, providing unprecedented end-user control of the desktop experience for increased productivity.

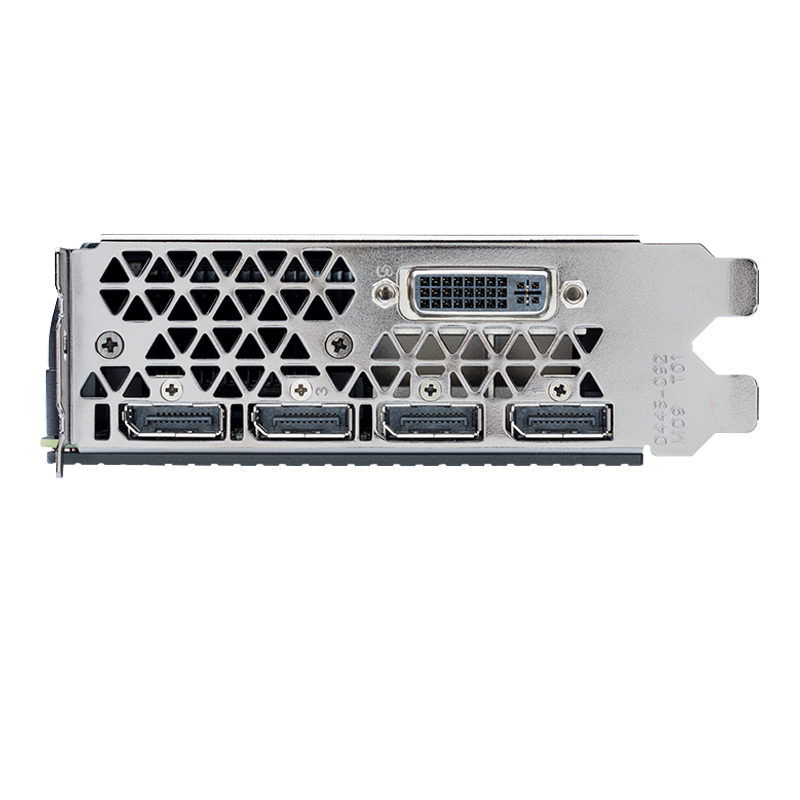

DisplayPort 1.2 Support (with Audio)
Compact and secure DisplayPort 1.2 connectors support multi-stream technology, stream cloning and ultra-high-resolution panels (up to 3840 x 2160 at 60Hz ). This enables maximum range, resolution, refresh rate, and color depth designed to support the latest display technologies.
NVIDIA Quadro Sync
Synchronizes the display and image output from one system or across a cluster of multiple systems. The NVIDIA Quadro Sync board manages up to 16 displays from 4 GPUs in one system, reducing the number of machines needed to power a video wall or multi-projector visualization environment, and supports image and frame synchronization between up to four GPUs when running NVIDIA Quadro Mosaic or independent GPUs in cluster. NVIDIA Quadro Sync also allows synchronization to an external timing source (also known as genlock or house sync). NVIDIA Quadro Sync enables advanced visualization systems to scale the resolution of the display surface with multiple projectors or displays with standard applications or applications designed for clusters.
NVIDIA 3D Vision and 3D Vision Pro
Advanced active shutter glasses that deliver crystal-clear stereoscopic 3D visualization for the most immersive experience. Infrared (3D Vision) or RF (3D Vision Pro) technology enable a range of immersive environments from your desktop workstation to collaborative work spaces. 3D Vision and 3D Vision Pro are sold separately.
OpenGL Quad Buffered Stereo Support
Provides a smooth and immersive 3D Stereo experience for professional applications.
Professional 3D Stereo Synchronization
Enables robust control of stereo effect through a dedicated three-pin mini-din connection to directly synchronize 3D stereo hardware to NVIDIA Quadro graphics card.
Deep Color Processing and Display
Preserve color detail and precision throughout the processing and display pipeline for smooth gradients transitions, even on high dynamic range imagery. Each color component can be processed at up to 32-bit floating point precision and displayed at up to 12-bit precision with supported DisplayPort 1.2 or HDMI 1.4 displays.
NVIDIA CUDA Parallel Computing Platform
Natively execute standard programming languages like C/C++ and Fortran, and APIs such as OpenCL, OpenACC and Direct Compute to accelerates techniques such as ray tracing, video and image processing, and computation fluid dynamics.
Unified Memory
A single, seamless 49-bit virtual address space allows for the transparent migration of data between the full allocation of CPU and GPU memory.
NVIDIA GPUDirect for Video
GPUDirect for Video speeds communication between the GPU and video I/O devices by avoiding unnecessary system memory copies and CPU overhead.
NVIDIA Enterprise-Management Tools
Maximize system uptime, seamlessly manage wide-scale deployments and remotely control graphics and display settings for efficient operations.
