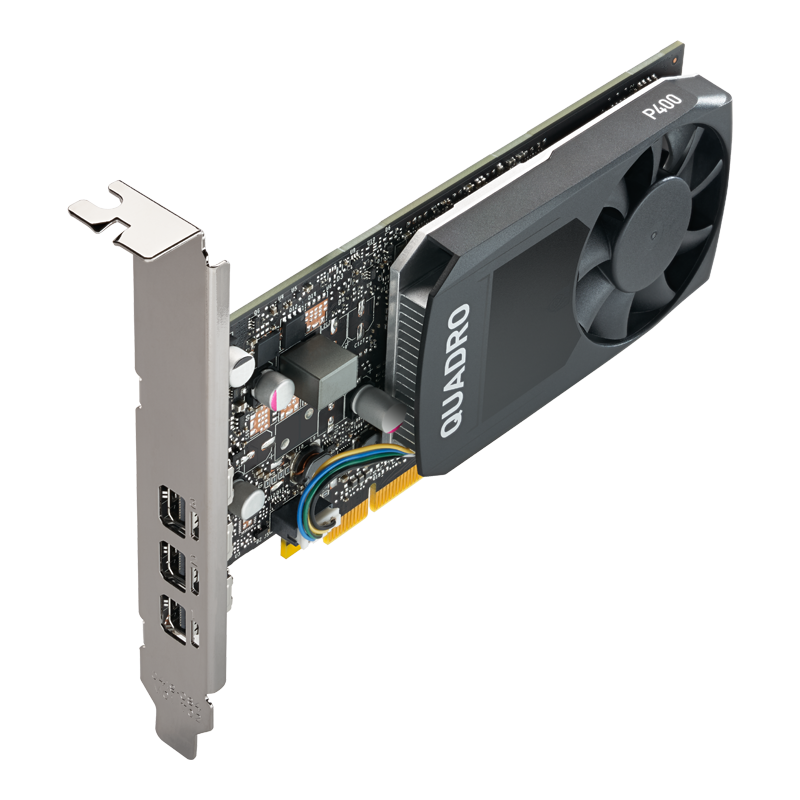

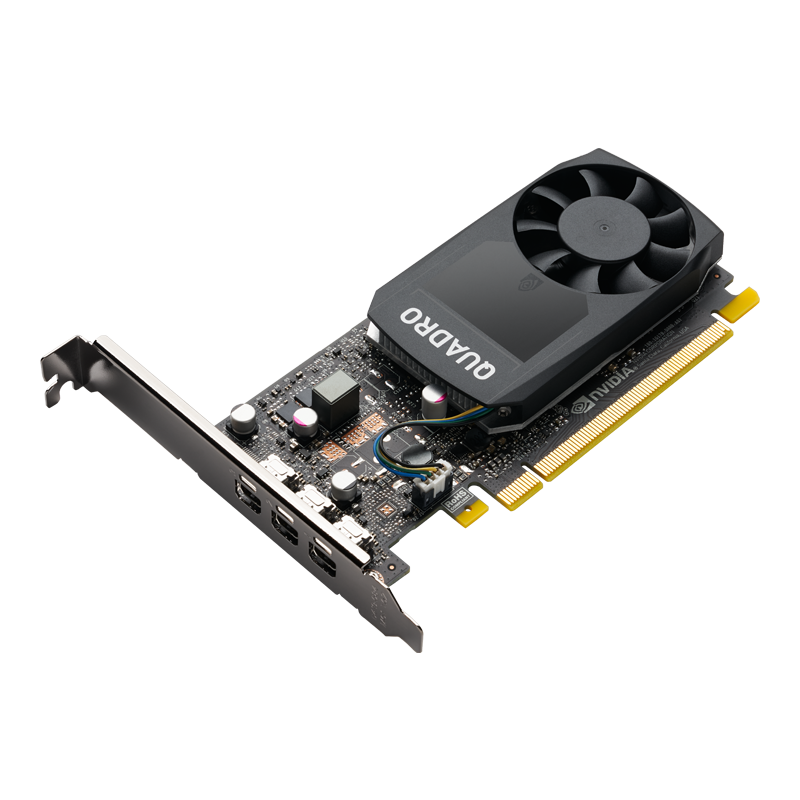

NVIDIA Quadro P400

NVIDIA^® Quadro P400

SKU: VCQP400V2-PB

Where to Buy

Description

Certification Request

EOL Notification Form EOL Notification Form

NVIDIA QUADRO P400

DELIVERS GREAT MAINSTREAM PROFESSIONAL APPLICATION PERFORMANCE

The new NVIDIA^® Quadro^® P400 combines the latest NVIDIA Quadro Pascal GPU architecture with 2GB of ultra-fast on-board memory to deliver great performance for a range of professional applications. A single-slot, low-profile form factor makes it compatible with even the most space and power-constrained chassis. Support for three 4K displays (4096 x 2160 at 60Hz) with HDR color gives you a wide visual workspace to view your work in extremely high resolution.

Professionals are increasingly looking to lower the total cost of their computing solutions. Today’s modern multi-application workflows require users to evaluate the impact of workstation functionality and performance against cost to ensure that any savings achieved by lower cost computing solutions will not result in schedule impacts and business loss.

With support for DisplayPort 1.4, the P400 can drive resolutions of up to 5K (5120 x 2880) at 60 Hz from a single cable. You can combine up to four NVIDIA Quadro GPUs in one system to simplify the deployment of display walls or other immersive display environments. DisplayPort 1.4 offers HDR color support, enabling brighter displays, more saturated colors and a greater than 10,000 to 1 contrast ratio.

Highlights

CUDA Cores	256
Peak Single Precision FP32 Performance	0.641 TFLOPS
GPU Memory	2 GB GDDR5
Memory Interface	64-bit
Memory Bandwidth	32 GB/s
System Interface	PCI Express 3.0 x16
Display Connectors	mDP 1.4 (3)

MANUFACTURING SOLUTIONS

Designers and engineers can create models with larger numbers of assemblies and components, manipulating parts and assemblies with smooth, interactive graphics.
Support for up to three 4K displays provides for an expansive desktop enabling designers to work with multiple apps simultaneously.
NVIDIA Quadro P400 supports display resolution up to 5K.

MEDIA & ENTERTAINMENT SOLUTIONS

Editors can work in real time with HDR content up to 5K full resolution.
Artists working with 2D imagery can realize better performance with assets stored in dedicated high performance graphics memory.
Create and play back ultra-high quality HDR content with H.264/HEVC encode and decode engines.
Combine multiple P400 cards to provide expansive visual workspaces.

AEC SOLUTIONS

Architects can create larger models, viewing 2D and 3D designs and plans, interacting with them in realtime with no lag.
Urban designers can create models with more detail and complexity.

Warranty

3-Year Limited Warranty

Free dedicated phone and email technical support
(1-800-230-0130)

Dedicated NVIDIA Quadro Field Application Engineers

Resources

Product Brochure
NVIDIA Pro Graphics Comparison
NVIDIA Power Guidelines
Quadro and NVS Display Resolution Support
Video Encode and Decode GPU Support Matrix

Links

Resource Center
NVIDIA Pro Graphics Configurator
NVIDIA GPU Accelerated Applications Catalog

Contact gopny@pny.com for additional information.

Features

NVIDIA QUADRO P400

GPU PERFORMANCE FEATURES

Pascal GPU Technology

Based on state-of-art 14nm FinFET process technology with 256 CUDA cores, the NVIDIA Quadro P400 provides performance and efficiency for CAD, DCC and visualization professionals in small and power efficient form factor.

Frame Buffer and Memory Bandwidth

2GB GDDR5 memory with up to 32 GB/s memory bandwidth delivers the performance boost and responsiveness demanded by entry level graphics applications.

Pascal Dynamic Load Balancing

Dynamically allocate GPU resources for graphics and compute tasks as needed to maximize resource utilization.

H.264 and HEVC Encode/Decode Engines

Deliver faster than real-time performance for transcoding, video editing, and other encoding applications with one dedicated H.264 and HEVC encode engines and a dedicated decode engine that are independent of 3D/compute pipeline.

NVIDIA GPU Boost 3.0

Achieve higher application performance without exceeding the power and thermal envelope of the board. Pascal GPU technology maximizes the boost potential of the GPU.

IMAGE QUALITY FEATURES

Full-Scene Antialiasing (FSAA)

Dramatically reduce visual aliasing artifacts or "jaggies" with up to 64X FSAA for unparalleled image quality and highly realistic scenes.

16K Texture and Render Processing

Texture from and render to 16K x 16K surfaces to support applications that demand the highest resolution and quality image processing.

Pascal Memory Compression

Increase bandwidth by up to 20% by reducing the amount of data fetched from memory for each frame with fourth generation, lossless delta compression.

DISPLAY FEATURES

NVIDIA Quadro MOSAIC Technology

Transparently scale the desktop and applications across up to 4 GPUs and 16 displays from a single workstation while delivering full performance and image quality, optimized for still image visualizations and unified desktops.

DisplayPort 1.4

Support four 4K monitors at 60Hz, or one 5K at 60Hz, the P400 supports HDR color for 4K at 60Hz for 10/12b HEVC decode and up to 4K at 60Hz for 10b HEVC encode.

HDR Ready

HDR (High Dynamic Range), a Windows only feature, expands the range of contrast and color significantly. Bright parts of the image can get brighter and dark portions inky black, so the image seems to have more depth. Colors get expanded to show more bright reds, green, blues and everything in between. HDR’s wide color gamut presents colors, brightness, and black levels with unprecedented fidelity. An HDR capable display or TV is required to take advantage of the NVIDIA Quadro board’s HDR output capability.

NVIDIA NVIEW Advanced Desktop Software

Gain unprecedented end-user control of the desktop experience for increased productivity in single large display or multi-display environments.

NVIDIA Quadro View

NVIDIA Quadro View desktop management software helps you organize single- or multi-monitor workspaces with ease. Divide your workspace into regions to snap applications into place. Save profiles with pre-set configurations for your workflows. And set up hotkeys to quickly access common functions. Quadro View delivers the tools you need to take charge of your desktop.

NVIDIA Quadro Experience

NVIDIA Quadro Experience delivers productivity tools that simplify time-consuming tasks so you can get things done faster. Keep your Quadro driver up to date with automatic alerts so your system is always optimized for performance. Capture content in 4K and upload to your favorite third-party sites, broadcast live, or stream to your NVIDIA Shield for effortless collaboration. Get a suite of display management tools with NVIDIA Quadro View software. Even enjoy great gaming with just one click. NVIDIA Quadro Experience is the ultimate productivity companion to your Quadro graphics card.

OpenGL Quad Buffered Stereo Support

Provide a smooth and immersive 3D Stereo experience for professional applications.

SOFTWARE SUPPORT

NVIDIA CUDA Parallel Computing Platform

Natively execute standard programming languages like C/C++ and Fortran, and APIs such as OpenCL, OpenACC and Direct Compute to accelerates techniques such as ray tracing, video and image processing, and computation fluid dynamics.

NVIDIA Enterprise-Management Tools

Maximize system uptime, seamlessly manage wide-scale deployments and remotely control graphics and display settings for efficient operations. Multi-GPU Technology.

NVIDIA Multi-GPU Technology

Combine the visualization and interactive design capability of multiple GPUs by leveraging a mix of NVIDIA Quadro GPUs to dramatically improve the production workflow.

Specifications

NVIDIA Quadro

SPECIFICATIONS

Compatible in all systems that accept an NVIDIA Quadro P400

CUDA Cores	256
Peak Single Precision FP32 Performance	0.64 TFLOPS
GPU Memory	2 GB GDDR5
Memory Bandwidth	32 GB/Sec
Memory Interface	64-Bit
System Interface	PCI Express 3.0 x16

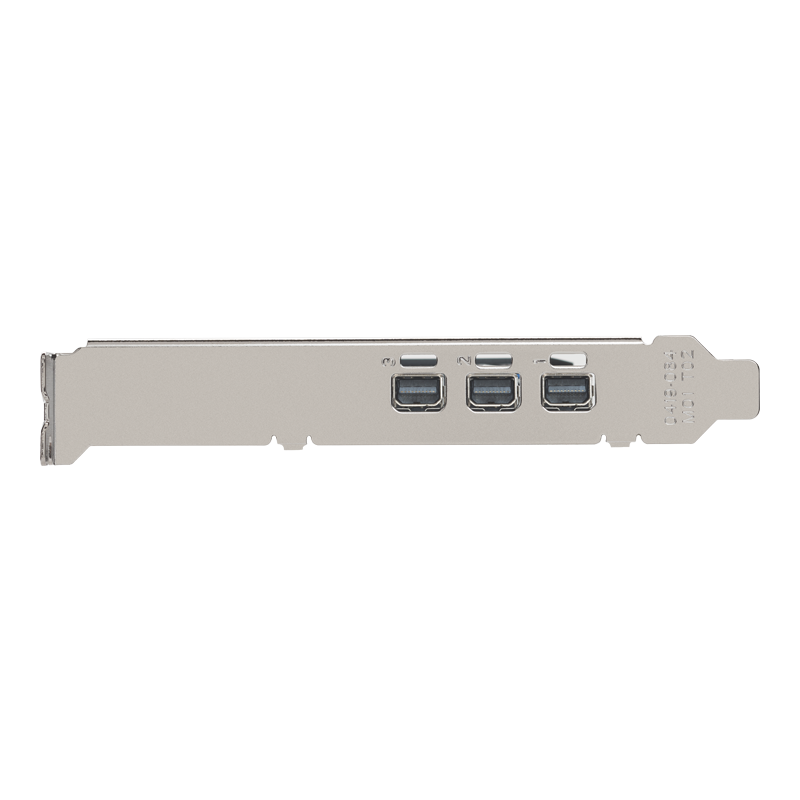

Display Connectors	Mini-DisplayPort 1.4 (3)
mDP to DP Adapters	3 Included
HDCP Support	Yes
Form Factor	2.713” H × 5.904” L, Single Slot
Thermal Management	Ultra-Quiet Fansink
Max Power Consumption	30 W NVIDIA Quadro Power Guidelines
Max Digital Resolution (2x DP Links)	5120 x 2880 x24 bpp at 60hz (7680 x 4320 x24 bpp at 60hz) NVIDIA Quadro and NVS Display Resolution Support

View All Product Specifications

3D GRAPHICS ARCHITECTURE

Scalable geometry architecture
Hardware tessellation engine
NVIDIA GigaThread engine with dual copy engines
Shader Model 5.1 (OpenGL 4.5 and DirectX 12)
Up to 32K x 32K texture and render processing
Transparent multisampling and super sampling
16x angle independent anisotropic filtering

32-bit per-component floating point texture filtering and blending
64x full scene antialiasing (FSAA)/128x FSAA in SLI Mode
Decode acceleration for MPEG-2, MPEG-4 Part 2 Advanced Simple Profile, H.264, HEVC, MVC, VC1, DivX (version 3.11 and later), and Flash (10.1 and later)
Dedicated H.264 & HEVC Encoder
Blu-ray dual-stream hardware acceleration (supporting HD picture-in-picture playback)
NVIDIA GPU Boost 3.0 (Automatically improves GPU engine throughput to maximize application performance)

NVIDIA CUDA PARALLEL PROCESSING ARCHITECTURE

Pascal SM Architecture (streaming multi-processor design that delivers greater processing efficiency)
Dynamic Parallelism (GPU dynamically spawns new threads without going back to the CPU)

Mixed-precision computing (16-, 32- and 64-bit) computing
API support includes: CUDA C, CUDA C++, DirectCompute 5.0, OpenCL, Java, Python, and Fortran

ADVANCED DISPLAY FEATURES

Support for any combination of four connected displays
Four DisplayPort 1.4 outputs supporting resolutions such as 3840 x 2160 at 120Hz and 5120 x 2880 at 60Hz
DVI-D Dual Link output (up to 2560 x 1600 at 60Hz and 1920 x 1200 at 120Hz), internal 400 MHz DAC DVI-D output (analog display up to 2048 x 1536 at 85Hz)
DisplayPort to VGA, DisplayPort to DVI (single-link and dual-link) and DisplayPort to HDMI adapters optionally available (resolution support based on dongle specifications)
HDR support over DisplayPort 1.4 (SMPTE 2084/2086, BT. 2020) (4K at 60Hz 10b/12b HEVC Decode, 4K at 60Hz 10b HEVC Encode)
HDCP 2.2 support over DisplayPort, DVI and HDMI connectors
12-bit internal display pipeline (hardware support for 12-bit scanout on supported panels, applications and connection)

NVIDIA 3D Vision technology, 3D DLP, Interleaved, and other 3D stereo format support
Full OpenGL quad buffered stereo support
Underscan/overscan compensation and hardware scaling
NVIDIA NVIEW multi-display technology

AVAILABLE ACCESSORIES

MDP-HMDI-THREE-PCK Connect the NVIDIA Quadro P400 to HDMI displays at resolutions up to 4K with PNY Part Number MDP-HDMI-THREE-PCK. The three included latching mini-DisplayPort to HDMI adapters are recommended by NVIDIA, provide outstanding image quality, and are built to professional standards. MDP-HDMI-SINGLE-PCK
MDP-HDMI-SINGLE-PCK Connect the NVIDIA Quadro P400 to an HDMI display at resolutions up to 4K with PNY Part Number MDP-HDMI-SINGLE-PCK. The included latching mini-DisplayPort to HDMI adapter is recommended by NVIDIA, provides outstanding image quality, and is built to professional standards.

MDP-DVI-THREE-PCK Connect the NVIDIA Quadro P400 to DVI-D SL displays at resolutions up to 1920 x 1200 with PNY Part Number MDP-DVI-THREE-PCK. The three included latching mini-DisplayPort to DVI-D SL adapters are recommended by NVIDIA, provide outstanding image quality, and are built to professional standards.
MDP-DVI-SINGLE-PCK Connect the NVIDIA Quadro P400 to a DVI-D SL display at resolutions up to 1920 x 1200 with PNY Part Number MDP-DVI-Single-PCK. The included latching mini-DisplayPort to DVI-D SL adapter is recommended by NVIDIA, provides outstanding image quality, and is built to professional standards.

SUPPORTED PLATFORMS

Microsoft Windows 10 (64- and 32-bit)
Microsoft Windows 8.1 and 8 (64- and 32-bit)
Microsoft Windows 7 (64- and 32-bit)
Microsoft Windows Server 2008 (64- and 32-bit)

Microsoft Windows Server 2012
Microsoft Windows Server 2012 R2 64
Microsoft Windows Server 2016
Linux – Full OpenGL implementation, complete with NVIDIA and ARB extensions (64- and 32-bit)

MINIMUM SYSTEM HARDWARE REQUIREMENTS

Intel Core i5, i7, Xeon or later
AMD Phenom or Opteron-class or later
PCIe x16 Gen 3 (preferred) expansion slot
2 GB or more of system memory, 8 GB recommended
200MB of available disk space for full driver installation

Blu-ray or DVD-ROM drive
Internet connection (if preferred for driver installation)
DisplayPort (preferred) or DVI compatible displays
HDMI display(s) with purchase of optional DP to HDMI adapter(s)

PACKAGE CONTAINS

NVIDIA Quadro P400 professional graphics board with attached low-profile (SFF) bracket
Unattached full-height (ATX) bracket
Three mDP to DP adapters
Software installation disc for Windows 10, 8.1, 8, and 7 (64- and 32-bit)
Printed Quick Start Guide
