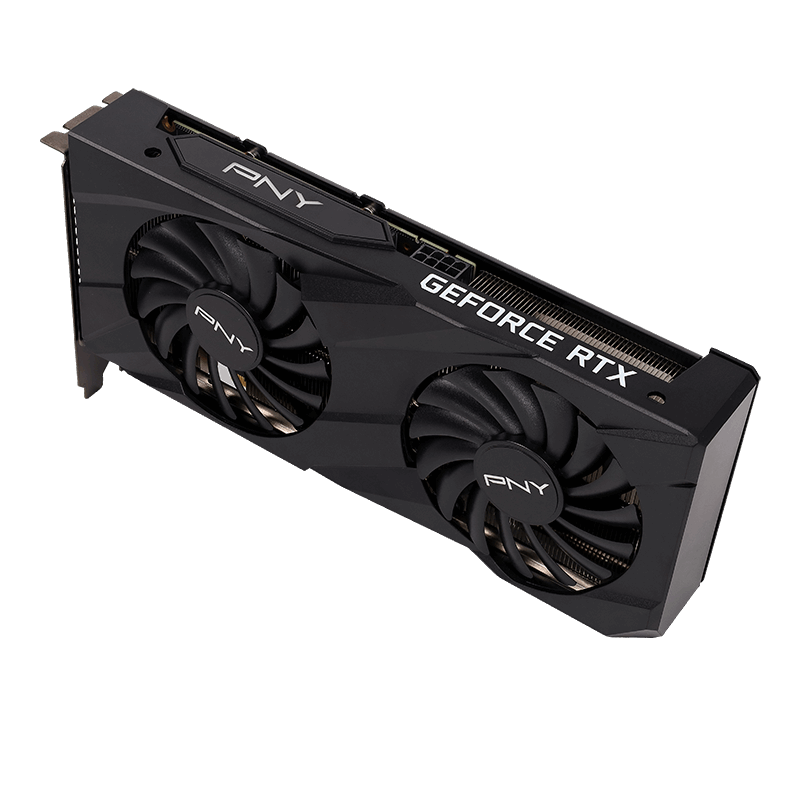

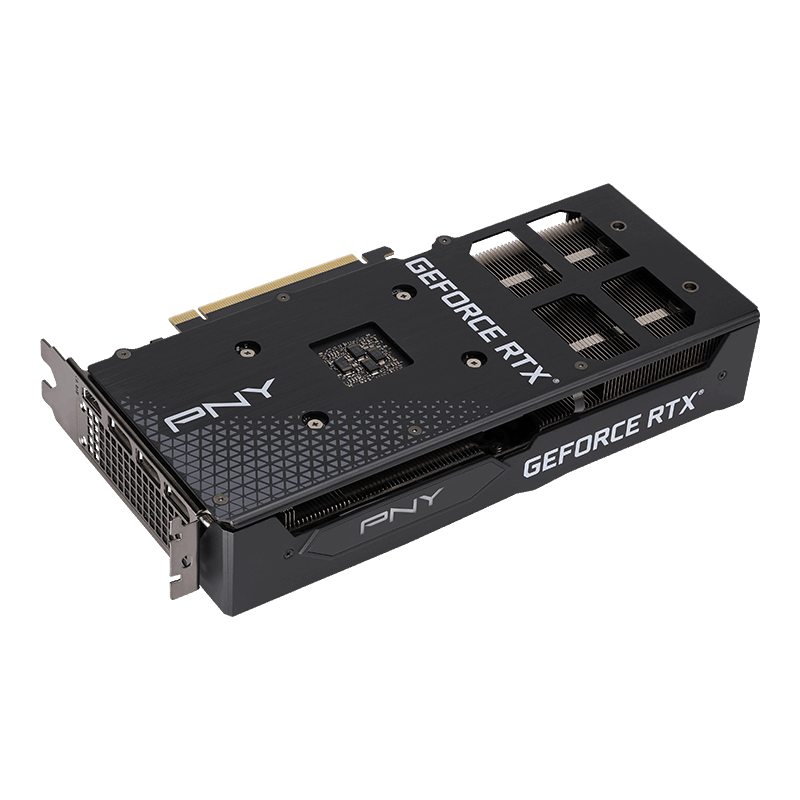

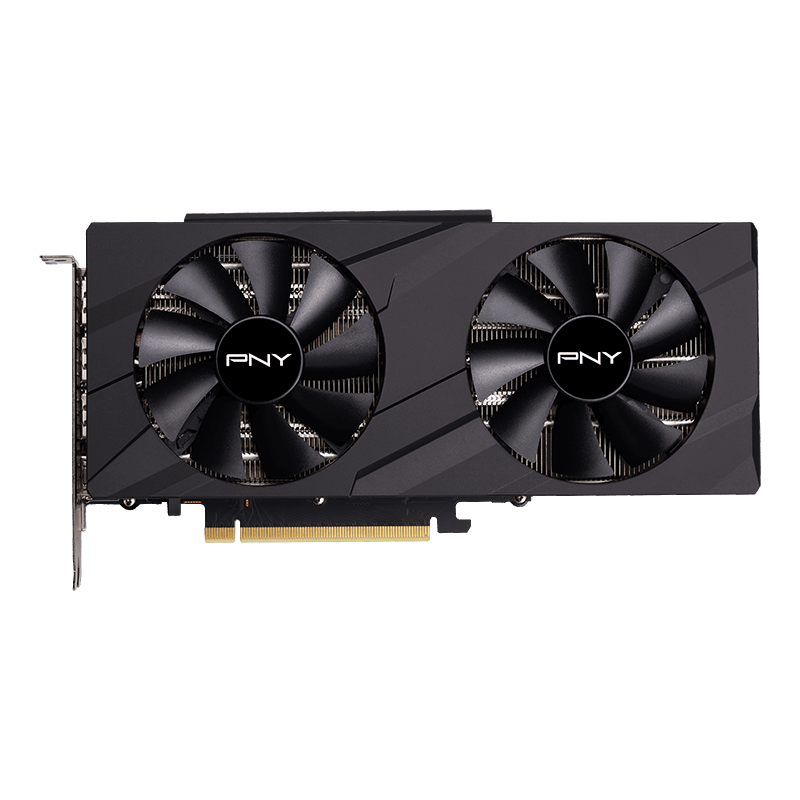

PNY GeForce RTX™ 3060 Ti 8GB GDDR6X VERTO™️ Dual Fan

SKU: VCG3061T8LDFBPB1

Description

PNY GeForce RTX™ 3060 Ti 8GB GDDR6X VERTO™️ Dual Fan

NVIDIA Ampere Streaming Multiprocessors

The building blocks for the world’s fastest, most efficient GPU, the all-new Ampere SM brings 2X the FP32 throughput and improved power efficiency.

2nd Generation RT Cores

Experience 2X the throughput of 1st gen RT Cores, plus concurrent RT and shading for a whole new level of ray tracing performance.

3rd Generation Tensor Cores

Get up to 2X the throughput with structural sparsity and advanced AI algorithms such as DLSS. These cores deliver a massive boost in game performance and all-new AI capabilities.

Overview

The GeForce RTX™ 3060 Ti lets you take on the latest games using the power of Ampere—NVIDIA’s 2nd generation RTX architecture. Get incredible performance with enhanced Ray Tracing Cores and Tensor Cores, new streaming multiprocessors, and high-speed G6X memory.

The all-new NVIDIA Ampere architecture features new 2nd generation Ray Tracing Cores and 3rd generation Tensor Cores with greater throughput. The NVIDIA Ampere streaming multiprocessors are the building blocks for the world’s fastest, most efficient GPU for gamers and creators. GeForce RTX™ 30 Series GPUs are powered by NVIDIA’s 2nd gen RTX architecture, delivering the ultimate performance, ray-traced graphics, and AI acceleration for gamers and creators.

KEY FEATURES

2nd Gen Ray Tracing Cores
3rd Gen Tensor Cores
PCI Express^® Gen 4
Microsoft DirectX^® 12 Ultimate
GDDR6X Graphics Memory
NVIDIA DLSS
NVIDIA^® GeForce Experience™
NVIDIA G-SYNC^®
NVIDIA GPU Boost™
Game Ready Drivers
Vulkan RT API, OpenGL 4.6
HDCP 2.3
VR Ready
Supports 4k 120Hz HDR, 8K 60Hz HDR and Variable Refresh Rate as specified in HDMI 2.1

MINIMUM SYSTEM REQUIREMENTS

PCI Express-compliant motherboard with one 2.3 width x16 graphics slot
Two 8-pin supplementary power connector
650 W or greater system power supply
Microsoft Windows^® 11 (November 2018 or later), Windows 7 64-bit, Linux 64-bit
Internet connection¹

Product Specifications

PNY Part Number	VCG3061T8LDFBPB1
UPC Code	751492767314
CUDA Cores	4864
Clock Speed	1410 MHz
Boost Speed	1665 MHz
Memory Speed (Gbps)	19
Memory Size	8GB GDDR6X
Memory Interface	256-bit
Memory Bandwidth (GB/sec)	608
TDP	225 W
NVLink	Not Supported
Outputs	DisplayPort 1.4 (x3), HDMI 2.1
Multi-Screen	4
Resolution	7680 × 4320 @60Hz (Digital)
Power Input	One 12-Pin
Bus Type	PCI-Express 4.0 ×16
Card Dimensions	9.83" x 4.62" x 1.87"; 2.3 Slot
Box Dimensions	12.8" x 6.77" x 3.54"

Click the icon below for Overclocking Software tool:

Warranty

3 Year

Product Resources

Tech Support

Have a question?
Call a Specialist or chat online.
Call 1-800-234-4597.

1.Graphics Card driver is not included in the box; GeForce Experience will download the latest GeForce driver from the Internet after install.

2. Up to 4K 12-bit HDR at 240Hz with DP 1.4a + DSC or HDMI 2.1a + DSC. Up to 8K 12-bit HDR at 60Hz with DP 1.4a + DSC or HDMI 2.1a + DSC
