GeForce GTX 1060 3GB CG

SKU: VCGGTX10603PB-CG

Description

GEFORCE GTX 1060 3GB CG

Performance

Ultra-fast FinFET and DirectX12 support to deliver the most powerful gaming experiences.

NVIDIA Pascal

VR Ready

Plug-and-play compatibility with leading headsets—driven by NVIDIA VRWorks™ technologies.

Velocity X Software Support

Maximize your GPU performance through real time monitoring, custom overclocking and total fan control.

Overview

10: GAMING PERFECTED

The PNY GeForce GTX 1060 graphics card is loaded with innovative new gaming technologies, making it the perfect choice for the latest high-definition games. Powered by NVIDIA Pascal™ – the most advanced GPU architecture ever created – the GeForce GTX 1060 delivers brilliant performance that opens the door to virtual reality and beyond.

This advanced graphics card is created with ultra-fast FinFET technology and supports DirectX 12 features to deliver fast, smooth, power-efficient gaming experiences. Boost performance by up to 3X in the high-definition and immersive VR Ready games compared to the previous generation GPUs. Bring more realism to every game with NVIDIA GameWorks™ technologies that offer a true cinematic experience-every time.

KEY FEATURES

Simultaneous Multi-Projection
VR Ready
NVIDIA Ansel Support
NVIDIA G-SYNC™
NVIDIA GameStream™
NVIDIA GPU Boost™ 3.0
Microsoft® DirectX® 12 Support
Vulkan API Support
Open GL 4.5 Support
PCI Express 3.0
Max Digital Resolution - 7680x4320 @ 60Hz

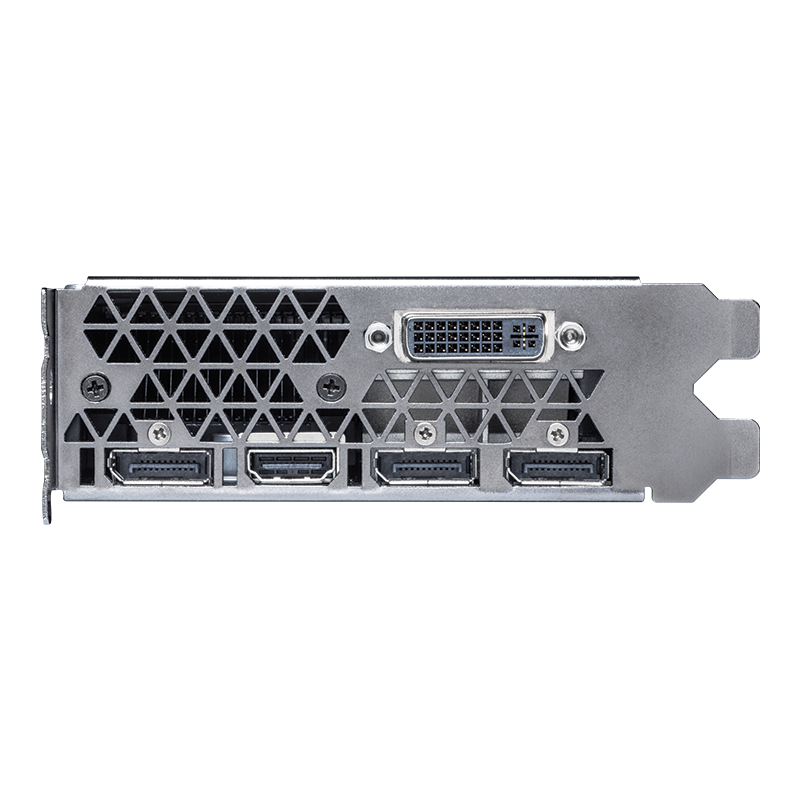

Display Connectors
- 3x DisplayPort 1.4
- HDMI 2.0b
- DL-DVI

MINIMUM SYSTEM REQUIREMENTS

PCI Express-compliant motherboard with one double-width ×16 graphics slot
One 6-pin PCI Express supplementary power connector
Minimum 400 W or greater system power supply
300MB of available hard-disk space
2 GB system memory (4GB or higher recommended)
Microsoft Windows 10, Windows 8, Windows 7, Linux, FreeBSDx86
DVD-ROM drive and Internet connection

Product Specifications

NVIDIA® CUDA® Cores

Core Speed

Boost Clock

Memory Clock

Memory Amount

Memory Interface

Memory Bandwidth

TDP

SLI

Multi-Screen

Max Resolution

Power Input

Bus Type

Card Dimensions

Width

Box Dimensions

Virtual Reality Ready

1152

1506 MHz

1708 MHZ

8 GBPS

3GB GDDR5

192-BIT

192GBPS

120W

Not Supported

Yes

7680X4320@60HZ (Digital)

One 6-PIN

PCI-Express 3.0 x 16

10.3” × 4.96” × 1.65”

Dual Slot

15.5” × 7.7” × 3.8”

Yes

Warranty

3 Year

Resources / Downloads

Product Brochure
Quick Start Guide
GeForce Experience

Tech Support

Have a question?
Call a Specialist or chat online.
Call 1-800-234-4597.

1. 7680 × 4320 @60Hz RGB8-bit with dual DisplayPort connectors or 7680 × 4320 @60Hz YUV420 8-bit with DisplayPort 1.3 connector.

2. Recommendation is made based on PC configured with an Intel Core i7 3.2 GHz processor. Pre-built system may require less power depending on system configuration.

3. Graphics Card driver is not included in the box; GeForce Experience will download the latest GeForce driver from the Internet after install.

4. In preparation for the emerging VirtualLink standard, Turing GPUs have implemented hardware support according to the VirtualLink Advance Overview.

5. Advertised TDP does not include the additional up to 35 watts required when Type-C port is in use. TDP increases by up to 35 watts when Type-C port is being utilized for VirtualLink™.

WARNING: This product contains chemicals including lead known in the state of California to cause cancer and/or reproductive harm, and birth defects or other reproductive harm.

ADVERTENCIA: Este producto contiene productos químicos reconocidos incluido el plomo reconocidos por el estado de California que provocan cáncer o daños reproductivo, defectos de nacimiento u otros daños reproductivos.

For more information: www.P65Warnings.ca.gov
