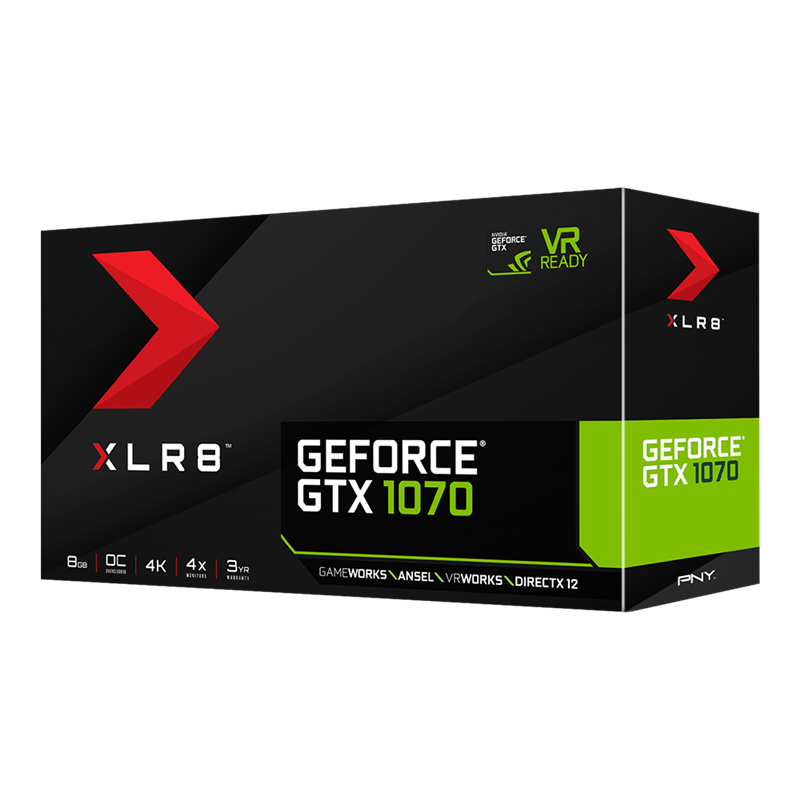

GTX 1070 XLR8 Gaming Overclocked Edition

GTX 1070 XLR8 Gaming Overclocked Edition

  • SKU: VCGGTX1070XGPB-OC-BB

GTX 1070 XLR8 Gaming Overclocked Edition

  • Description

    GEFORCE GTX 1070 XLR8 GAMING OC

    OVERLOCKED

    1708 MHZ Boost Speed

    SILENT

    XLR8 Triple Fan Cooler; game faster, game silent.

    VR READY

    Plug-and-play compatibility with leading headsets—driven by NVIDIA VRWorks™ technologies.

    VELOCITY X SOFTWARE SUPPORT

    Maximize your GPU performance through real time monitoring, custom overclocking and total fan control.

    Overview

    XLR8 Your Performance

    Enjoy your supercharged gaming experience with PNY GTX 1070 XLR8 Gaming Overclocked Edition. Powered by the new NVIDIA® Pascal™ architecture and optimized with PNY's XLR8 Dual Fan XLR8 Cooler; Now you can game faster, game silent.

    This advanced graphics card is created with ultra-fast FinFET technology and supports DirectX 12 features to deliver fast, smooth, power-efficient gaming experiences.

    KEY FEATURES

    • Factory Overclocked
    • PNY Silent XLR8 Dual Fan Cooler
    • Simultaneous Multi-Projection
    • VR Ready
    • NVIDIA Ansel Support
    • NVIDIA SLI® w/ HB Bridge Support
    • NVIDIA G-SYNC™
    • NVIDIA GameStream™
    • NVIDIA GPU Boost™ 3.0
    • Microsoft® DirectX® 12 Support
    • Vulkan API Support
    • Open GL 4.5 Support
    • PCI Express 3.0
    • Max Digital Resolution - 7680x4320 @ 60Hz1
      • 3x DisplayPort 1.4
      • HDMI 2.0b
      • DL-DVI

    MINIMUM SYSTEM REQUIREMENTS

    • PCI Express-compliant motherboard with one double-width ×16 graphics slot
    • One 8-pin PCI Express supplementary power connector
    • Minimum 500 W or greater system power supply
    • 300MB of available hard-disk space
    • 2 GB system memory (4GB or higher recommended)
    • Microsoft Windows 10, Windows 8, Windows 7, Linux, FreeBSDx86
    • DVD-ROM drive and Internet connection
    Features
    CUDA Cores 1920
    Core Speed 1518 MHz
    Boost Clock 1708 MHZ
    Memory Clock 8 GBPS
    Memory Amount 8GB GDDR5
    Memory Interface 256-bit
    Memory Bandwidth 256GBPS
    TDP 150W
    SLI SLI HB Bridge Supported
    Multi-Screen Yes
    Max Resolution 7680 × 4320 @60Hz (Digital)
    Power Input One 8-PIN
    Bus Type PCI-Express 3.0 x 16
    Card Dimensions 12" x 5.03" x 1.49"
    Width Dual Slot
    Box Dimensions 12.5" x 5.03" x 1.49"
    Virtual Reality Ready Yes

    Warranty


    3 Year

    Tech Support


    Have a question?
    Call a Specialist or chat online.
    Call 1-800-234-4597.


    1. 7680 × 4320 @60Hz RGB8-bit with dual DisplayPort connectors or 7680 × 4320 @60Hz YUV420 8-bit with DisplayPort 1.3 connector.

    2. Recommendation is made based on PC configured with an Intel Core i7 3.2 GHz processor. Pre-built system may require less power depending on system configuration.

    3. Graphics Card driver is not included in the box; GeForce Experience will download the latest GeForce driver from the Internet after install.

    4. In preparation for the emerging VirtualLink standard, Turing GPUs have implemented hardware support according to the VirtualLink Advance Overview.

    5. Advertised TDP does not include the additional up to 35 watts required when Type-C port is in use. TDP increases by up to 35 watts when Type-C port is being utilized for VirtualLink™.
